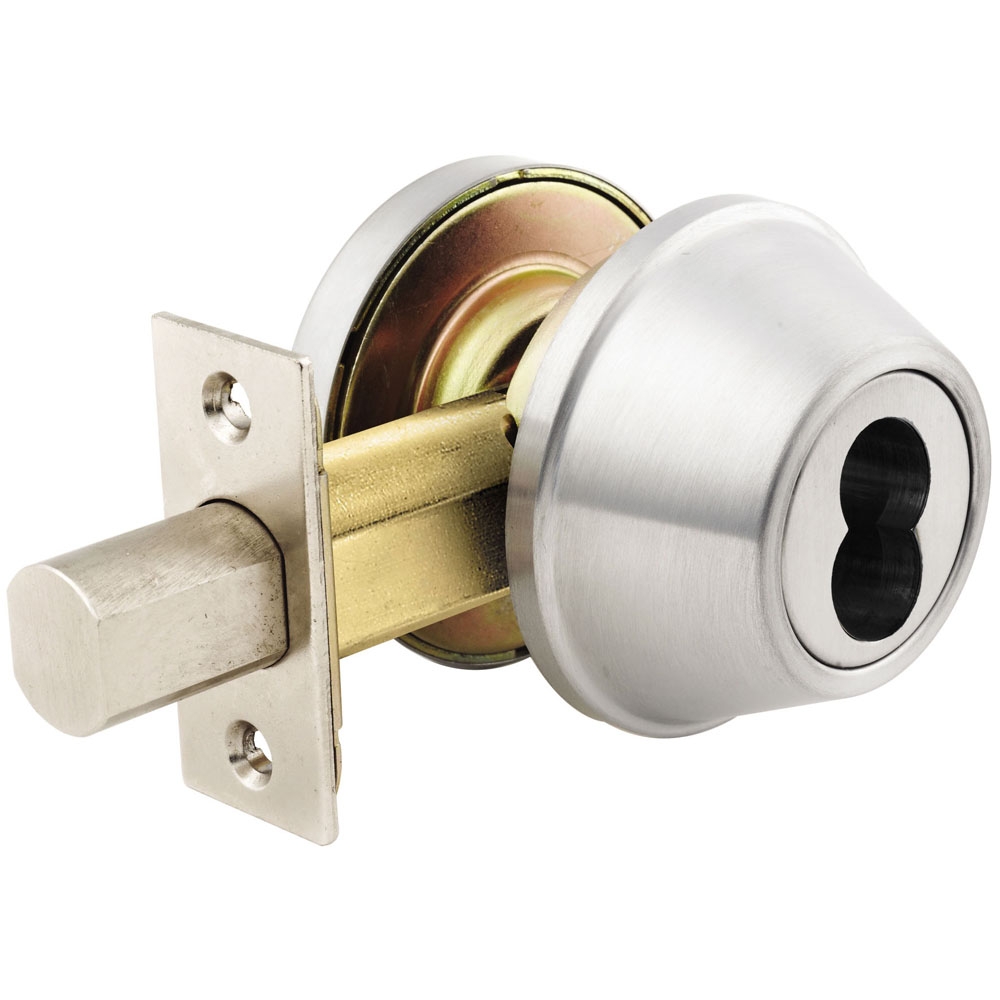

Arrow D Series deadlocks are engineered to perform under the most extreme conditions where security is critical. Our Certified Grade 1 extra heavy-duty deadlock surpasses the demands of industrial, institutional, and commercial applications.
Benefits
- Strength & security
- 1-year mechanical warranty
- Available in 9 different finishes (US3, US4, US5A, US10, US10BE, US10B, US26, US26D, BSP)
Specifications
- ANSI/BHMA Code: A156.36
- Deadbolt Type: Bored
- Door Thickness (Standard): 1 3/4"
- Handing: Non-handed
- Latchbolt Throw: 1"
- Maximum Backset: 2 3/4"
- Minimum Backset: 2 3/8"
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type: Flat
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 1-year limited warranty.
Housing – Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard ondouble cylinder functions.
Deadbolt – 1" (25.40mm) throw, solid steel deadbolt withhardened, free spinning, steel pin insert.
Backset – 2-3/8" (60.32mm), 2-3/4" (69.85mm).
Deadbolt fronts – 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8” (60.32mm) backset, 2-1/4” (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4” (69.85mm) backset. Drive-in deadbolts are available.
Doors – 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard. Thick door kits available up to 2-1/4" (57mm).
Strikes – Supplied standard with #395 strike kit. (Includes #346 metal frame strike and #345 wood frame strike).
Handing – All functions are reversible.
Cylinder – Standard: Solid brass, 6-pin cylinder. Supplied with twonickel silver keys.
Options: Arrow A or sectional keyways, Schlage® C keyway, master keying, prep for small format interchangeable core cylinder (cylinder not included)
