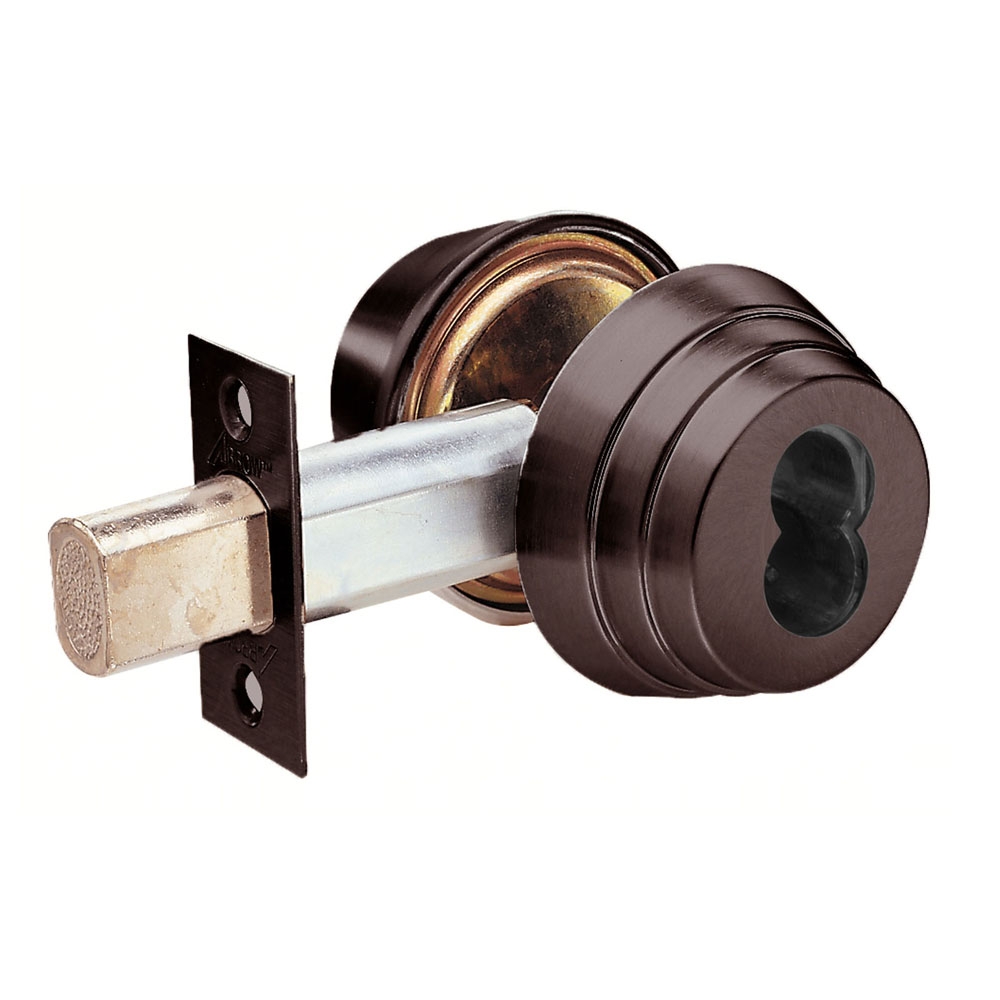

Arrow Lock E61-10B-IC Deadbolt, Single Cylinder

Arrow Lock E61-10B-IC Deadbolt, Single Cylinder

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Benefits

• Strength & security
• Available in 10 different finishes (US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP)
• 1-year mechanical warranty

Specifications

• ANSI/BHMA Code: A156.36
• Deadbolt Type: Bored
• Door Thickness (Standard): 1 3/4"
• Handing: Non-handed
• Latchbolt Throw: 1"
• Maximum Backset: 2 3/4"
• Minimum Backset: 2 3/8"
• Maximum Door Thickness: 1 3/4"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type: Flat
• UL Listed: Yes
• ULC Listed: Yes
• Warranty: 1-year limited warranty.
