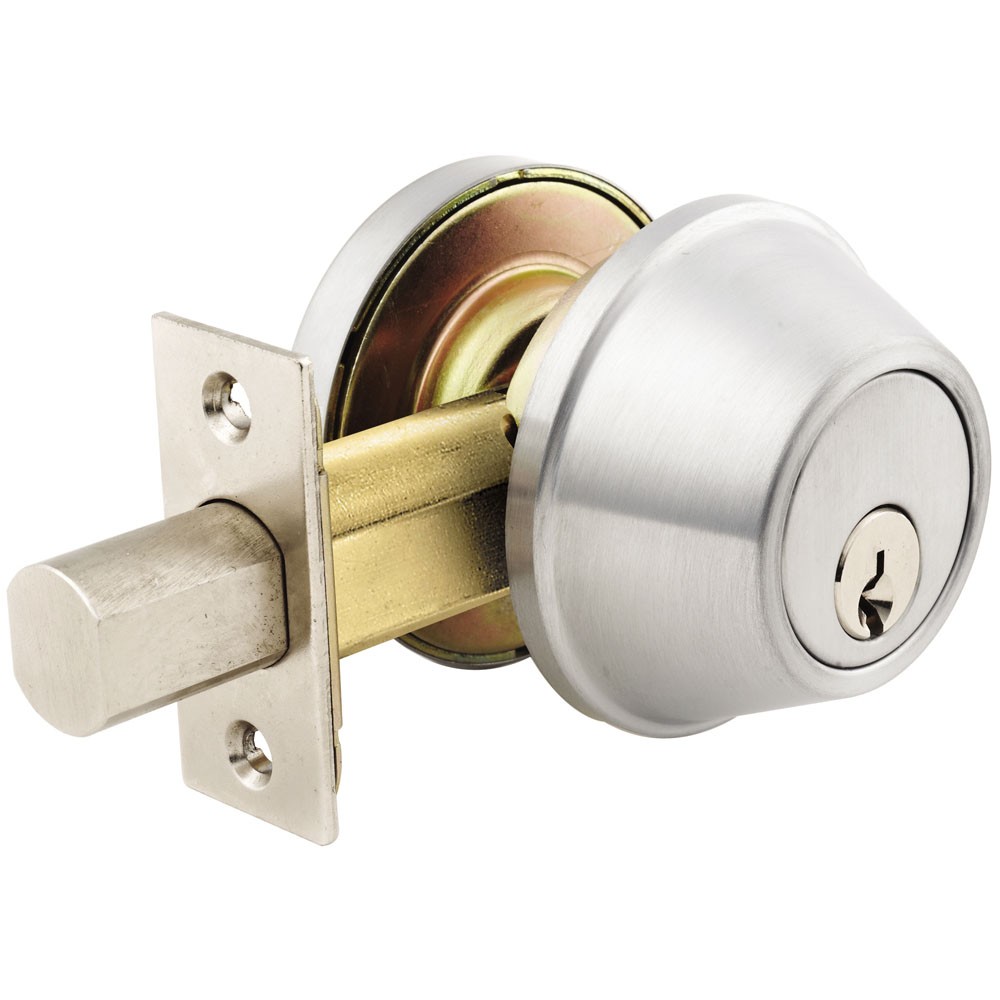

Arrow Heavy Duty Deadbolt Locks

SKU # D60

Read Review(s) | Log in to Review

Housing: Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions.
Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin.
Backset: 2-3/8" (60.32 mm), 2-3/4" (69.85 mm).
Deadbolt fronts: 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset, 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.
Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.
Strikes: Supplied standard with #346 security strike for metal frame.
Handing: All functions are reversible.
Cylinder, Standard: Solid brass, Arrow “A” keyway, drilled for 6 pins, pinned to 5. Supplied with two keys. Available in Schlage CS keyway and other competitive keyways.
Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.

Pricing varies based on options selected below.

US$83.79

Finish *
Backset *
Function *
Keyway *

Qty:

Clear All

Description:

Arrow D Series deadlocks are engineered to perform under the most extreme conditions where security is critical. Our Grade 1 extra heavy duty deadlock surpasses the demands of industrial, institutional and commercial applications.
