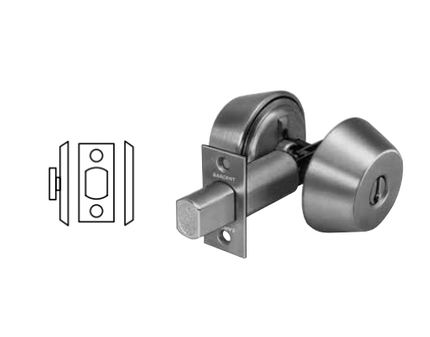

The Sargent 480 Series is a high grade cylindrical deadbolt which meets ANSI A156.5 Grade 1 requirements.
Function: The Sargent 480 Series Deadbolt is available in Cylinder x Blank (486), Classroom (487) and Blank Plate and Thumbturn (489) .
Finish: The Sargent 480 Series Deadbolt comes in Satin Chrome (626) finish.
Cylinder: The 480 Series comes with a standard 6-Pin Cylinder, Sargent LA Keyway, Keyed Different (Random).
Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: 2-3/4" (70mm) Standard.
Latch: 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw.
Strike: 404 Strike Supplied Standard.
