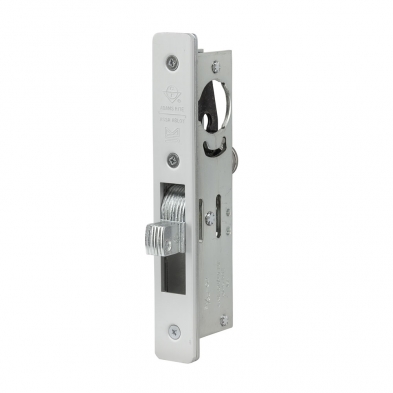

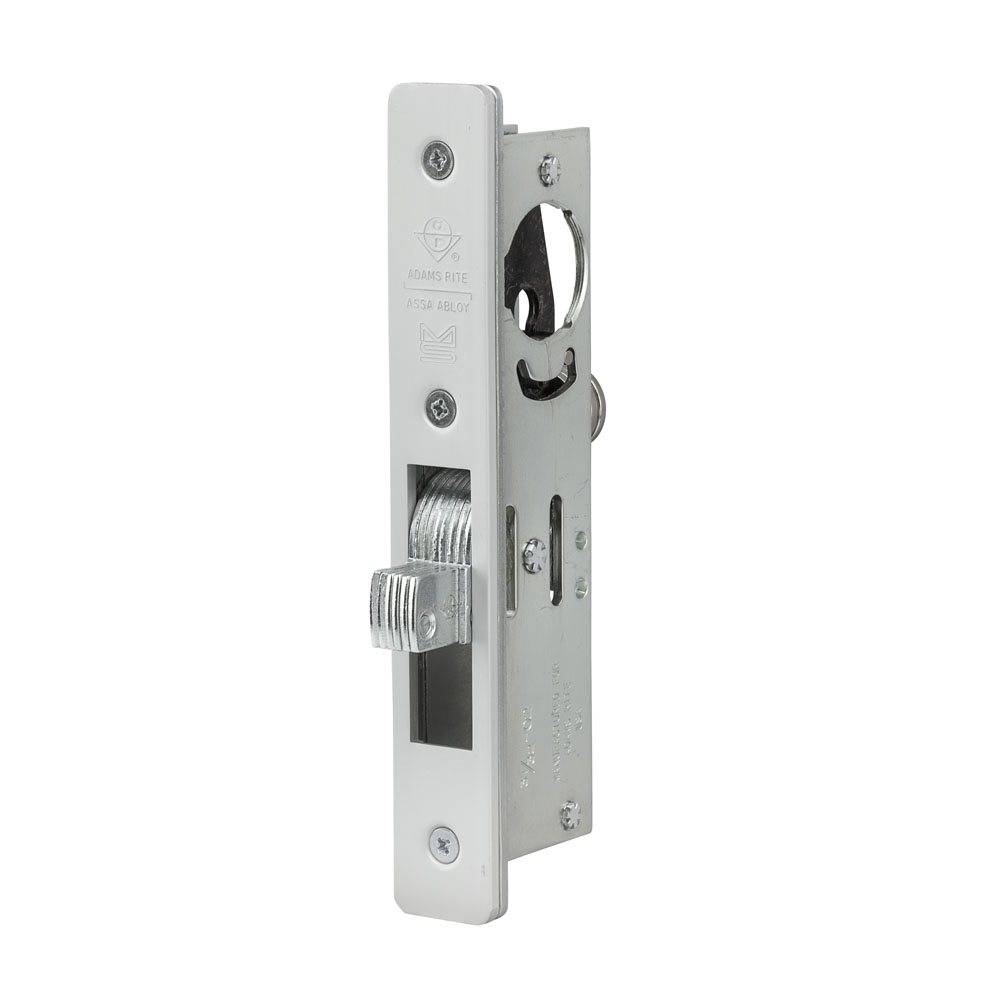

Adams Rite 1830-02 Bottom Rail Deadlock, 32/32" Backset
- Cylinder Height: 31/32" [24.6 mm] and 1-1/8" [28.6 mm] only.
- Case: Measures 1" x 6" x depth [ 25.4 mm x 152.4mm x depth] where depth varies with cylinder height. Steel with corrosion-resistant plating.
- Bolt: 15/32" x 5/8" x 2-1/8" [ 11.9 mm x 15.9 mmx 54.0 mm] with 5/8" [15.9 mm] throw. Six-ply laminated steel with eight plies within case. Center ply has alumina-ceramic core to deter hacksaw attack.
- Strike: See back page (of catalog) for dimensions of strike slot which can be cut in metal thresholds. 4006 Strike, shown, available separately with stainless steel trim plate and plastic box.
- Standard Package: Individually boxed with mounting screws. Cylinder and/or thumbturn available separately.
- Shipping weight: 1-1/2 lbs [0.68 kg]
360° turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066Thumbturn, available separately. Lock accepts cylinder from either or both sides.
