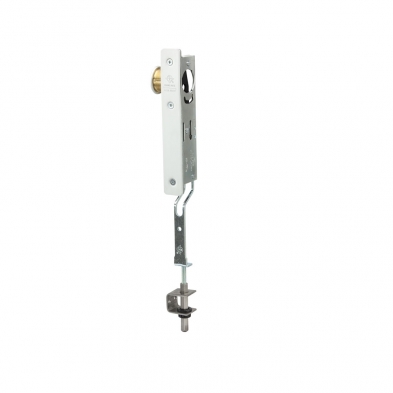

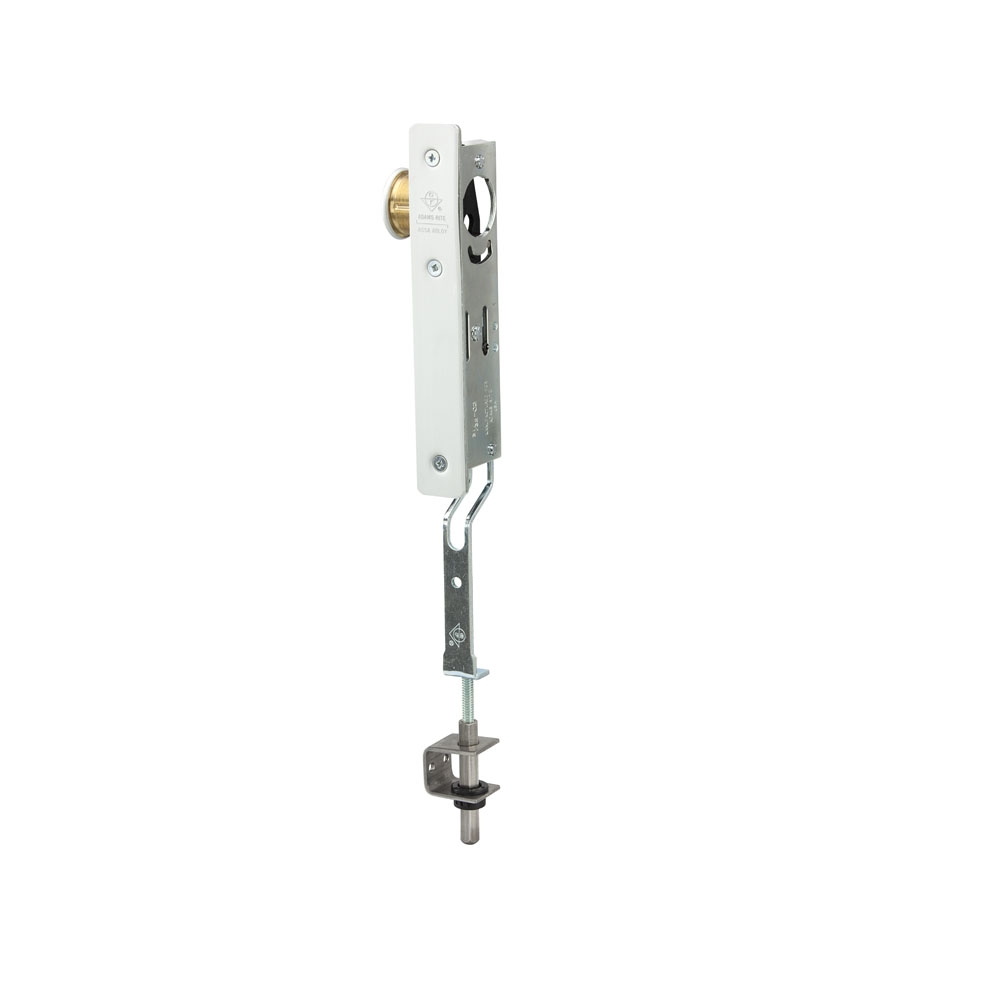

Adams Rite 1870-30-628 Cylinder Operated Flushbolt
- Cylinder Backset: 31/32" [24.6 mm] or 1-1/8" [28.6 mm] only.
- Cylinder Height: Standard length (cylinder center to retracted bolt tip) is 12" [304.8 mm] with ± 1-1/4" [31.8mm] adjustment. Please contact factory for other lengths available by special order.
- Case: Steel with corrosion-resistant plating. Measures 1" x 6" x depth [25.4 mm x152.4 mm x depth]. Depth varies by backset.
- Bolt: Stainless steel. Hexagonal 3/8" [9.5 mm] flat to flat, with 11/16" [17.5 mm] throw.
- Strike: 1/2" [12.7 mm] diameter hole in metal thresholdor header is suitable. For wood thresholds, 4005 Strike is available separately.
- Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. Available in choice of 313 Dark bronze anodized, 335 Black anodized, 628 Clear anodized.
- Standard Package: Flushlock mechanism boxed with actuator arm attached, rod/bolt assembly unattached. Stainless steel bolt guide, mounting screws, and installation instructions included. Cylinder available separately.
- Shipping Weight: 1-1/4 lbs [.57 kg].
360° turn of key throws or retracts the hex-section bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066Thumbturn, available separately. Lock accepts cylinder from either or both sides.
