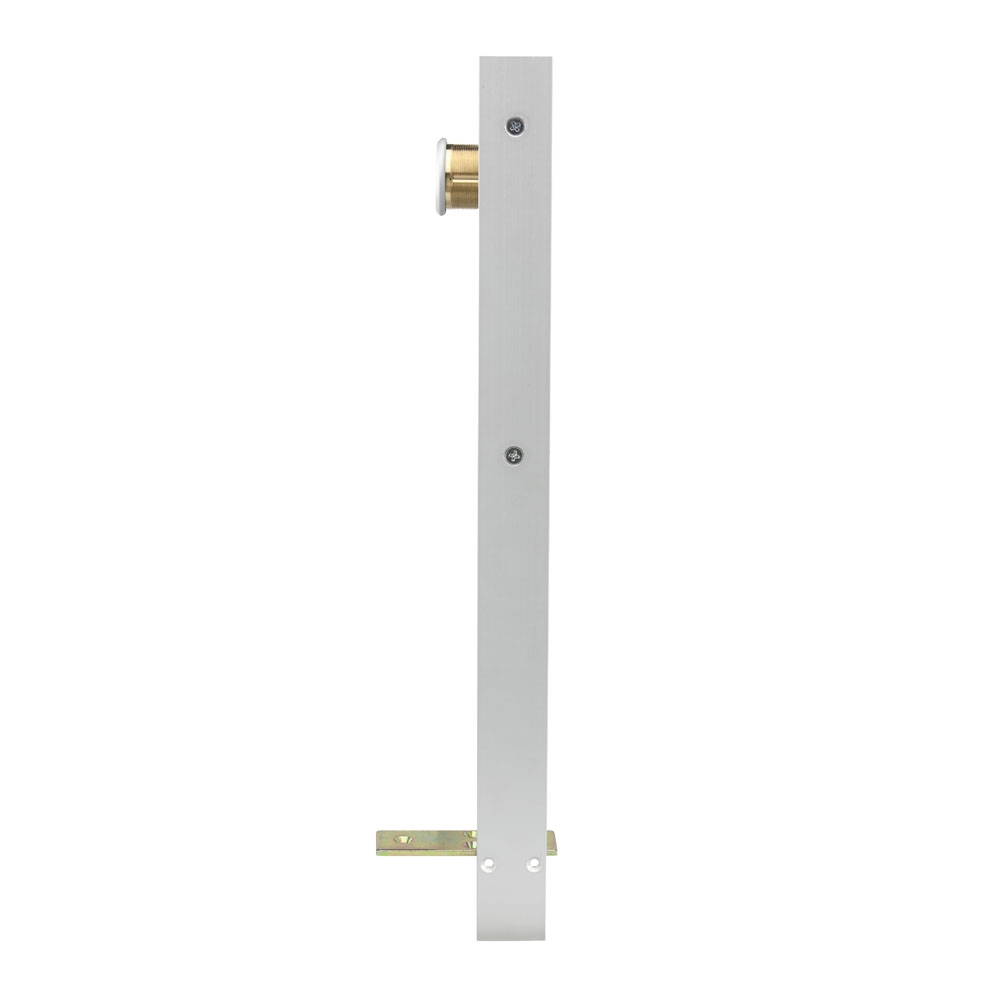

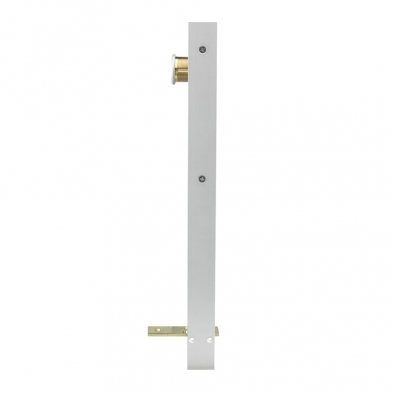

Adams Rite 1877-628 Cylinder Operated Flushbolt
- Cylinder Backset: 1-1/4" [31.8 mm] only.
- Cylinder Height: Standard length (cylinder center to door end) is 13-1/2" [342.9 mm]. Please contact factoryfor other lengths available by special order.
- Case: Steel with corrosion-resistant plating. Measures 1" x 6" x 1-29/32" [25.4 mm x 152.4 mm x 48.4 mm].
- Bolt: Stainless steel. Hexagonal 3/8" [9.5 mm]flat to flat, with 11/16" [17.5 mm] throw.
- Strike: 2-1/4" x 15/16" [57.2 mm x 23.8 mm] strike is supplied.
- Armored Faceplate: Measures 1-1/4" x 15-5/8" [31.8 mm x 396.9 mm]. Available in choice of 313 Dark bronze anodized, 628 Clear anodized, US3 (605) Bright brass, US26D (626) Satin chrome.
- Standard Package: Flushlock mechanism boxed with actuator arm attached, rod/bolt assembly unattached. Stainless steel bolt guide, mounting screws, and installation instructions included. Cylinder available separately.
- Shipping Weight: 2 lbs [0.91 kg]
360° turn of key throws or retracts the hex-section bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066Thumbturn, available separately. Lock accepts cylinder from either or both sides.
