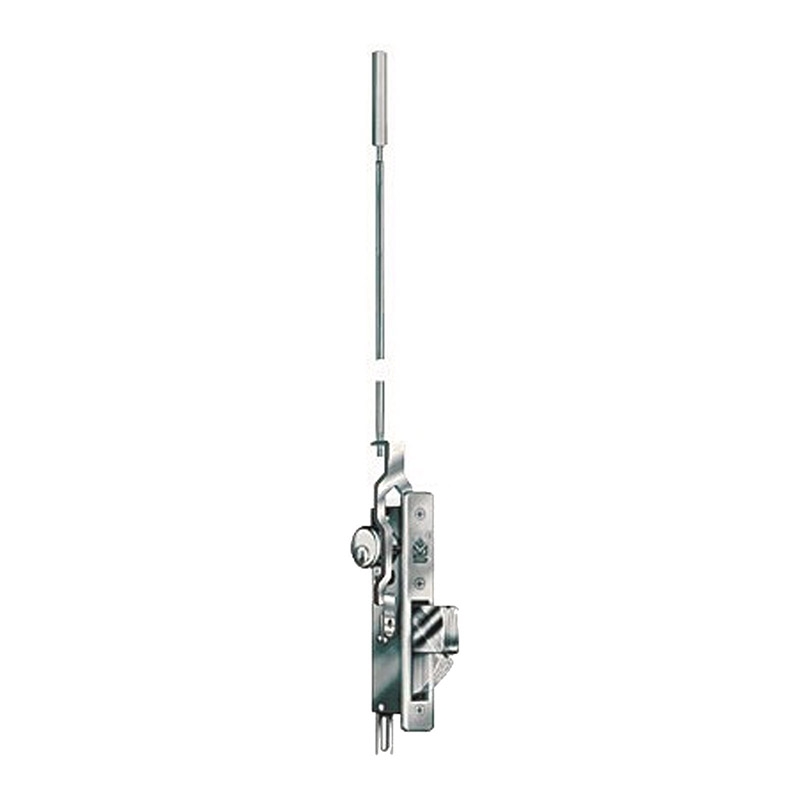

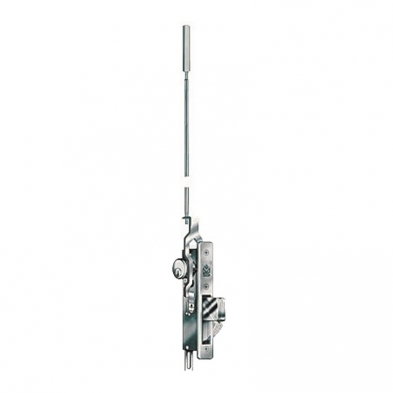

Adams Rite 4016-30-01 Header Bolt

SKU # AD/4016-30-01

Constructed to provide security to pairs of aluminum stile doors, the Adams Rite 4016-30-01 Header Bolt adds maximum security features with the turn of a key. By extending its stainless steel hexbolts and pivoting the MS bolt into the mating stile simultaneously, this three-point lock secures the doorway. It operates on a 360 degree key turn, and the key can only be removed if the lock is in a positively locked or unlocked position.

  • Designed for 7' high doors
  • 1-1/8" lock backset
  • Not applicable to 7/8" backset locks
  • Hexagonal 3/8" flat to flat header bolt
  • Constructed out of stainless steel
