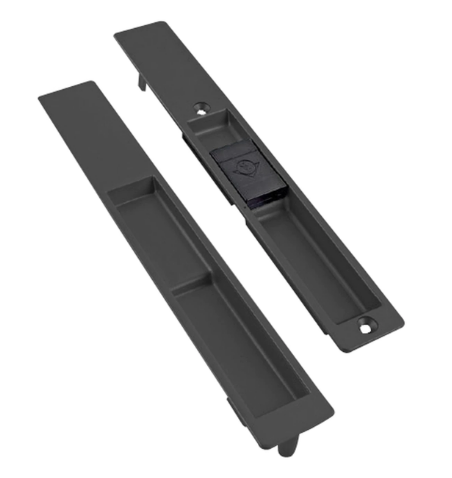

Adams Rite 4189-09-02-119-00-IB Flush Lockset
Projecting only 1/10" [2.5 mm] from the door stile on either side, the all-metal 4189,4190 Flush Locksets allow doors to slide freely past other sliding units or stationary panels. There are no projecting handles to prevent doors from being stacked in a wall pocket. Not recommended for wood doors.
Operation:
Locksets operated from inside by a simple up or down movement of a slidebutton, set flush in the deeply recessed finger pull. The lock mechanism (latching action unavailable) is the time-tested and field-proven Adams RiteMS1847 Deadlock and features the adjustable, self-protecting bolt.
- 4189 without cylinder
- 4190 has a flush mounted cylinder outside
- 4195 matching 'dummy set' is also available
Features:
Backset: Variable, minimum 5/8" [15.9 mm], maximum 1-9/32" [32.5 mm] from face of lock to escutcheon and cylinder centerline.
Stile Depth: Minimum clear depth: Backset plus 9/16" [14.3 mm].
Escutcheons: Zinc alloy, satin silver epoxy.
Anti Lift Lock Mechanism: Basic MS1848-09 (radius ends) or MS1848-10 (square ends) is supplied. Stainless steelbolt is self-protecting, adjustable for reach.
Operation:
Inside: Vertical slide button projectsor retracts deadlock bolt.
Outside: 4190 features a key in, five pin cylinder with Schlage “C” keyway that projects or retracts bolt.
Standard Package: 4190, with cylinder, and 4189, without cylinder, are each complete packages. Shipped individually boxed with mounting screws. 4190 includes two keys. Standard 4190 units are keyed different (KD). Contact factory for special keying.
Shipping Weight: 1-1/4 lbs [0.57 kg].
