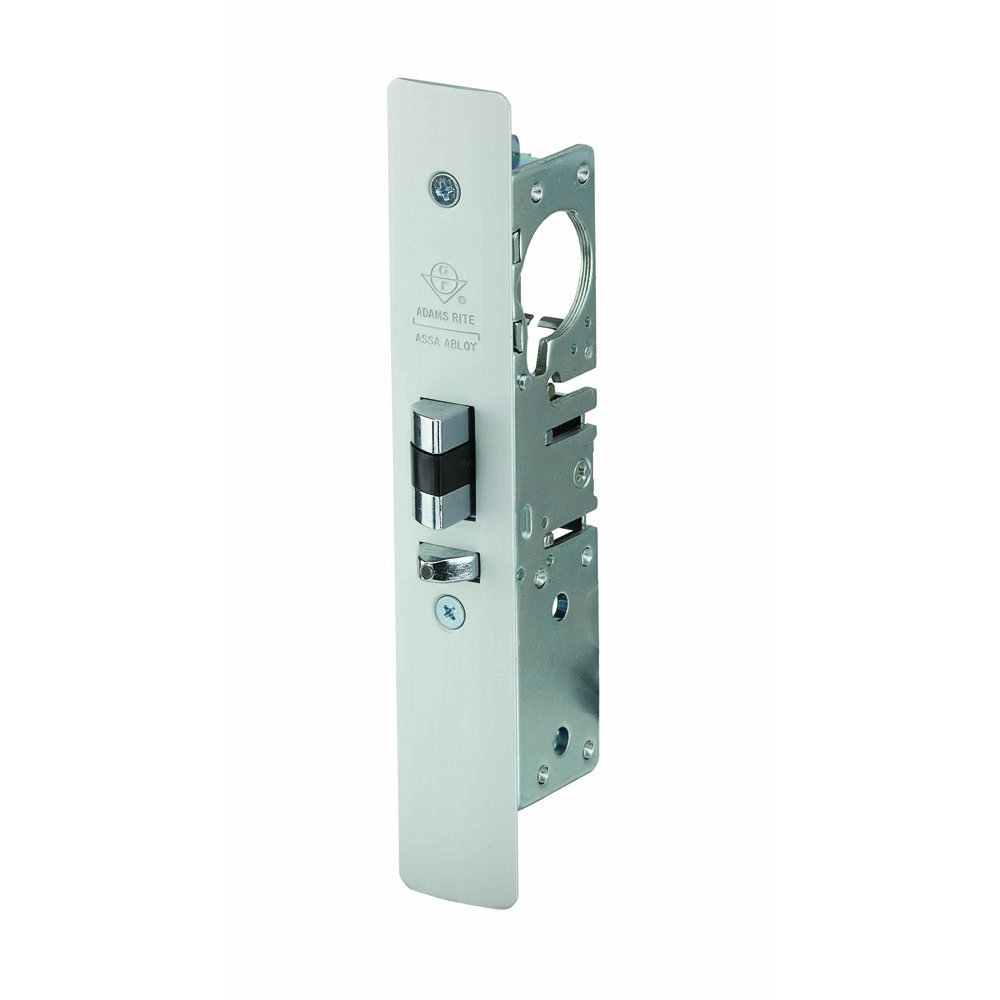

Adams Rite 4530-35-101-628 Standard Duty Retrofit Deadlatch
The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains thebolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. 4530 Deadlatches are designed to fit without alteration, the stile cutout for older MS1850 Series Deadlocks and discontinued 4250 Deadlatches of same backset.
Operation:
Turn key or operate handle to retract spring-loaded Latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.
Features:
Cylinder Backset: 7/8" [22.2 mm], 31/32" [24.6 mm], or 1-1/8" [28.6 mm] only.
Case: Steel with corrosion-resistant plating. Measures 1" x 5-13/16" x depth [25.4 mmx 147.6 mm x depth]. Depth varies by backset.
Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
Latchbolt: All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" x 1" x 1/2"[12.7 mm x 25.4 mm x 12.7 mm] throw.
Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.
Faceplate: Measures 1-1/4" x 7-13/32"[31.8 mm x 188.1 mm].
Strike: Standard strike furnished is 4901-01 for flat jamb.
Standard Package: Individually boxed with strike plate and mounting screws. Cylinder, paddle,handle available separately.
Shipping Weight: 1-1/4 lbs [0.57 kg]
