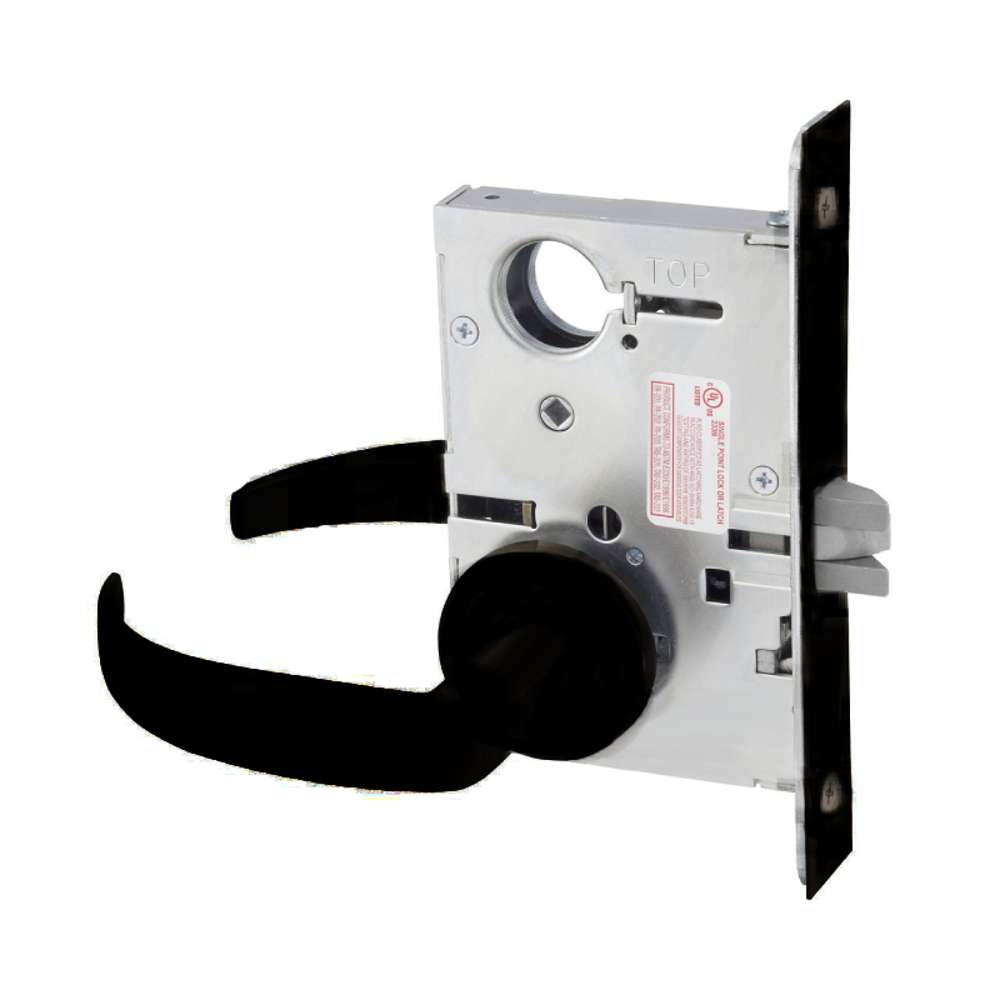

Arrow Lock BMX20BRLBSPRHKD Mortise BMX Series Entrance Dorm Function RH Broadway Lever Black KD
Arrow mortise locks are intended for heavy duty use in schools, hospitals, and commercial buildings where security, durability and low maintenance are required.
The BMX Series offers a selection of preferred trim designs and functions which meet or exceed the performance requirements of ANSI/BHMA Grade 1.
Arrow mortise locks can be found in the following types of facilities:
- Schools
- Hospitals
- Office Buildings
- Government
- Multi-Family Housing
Specifications
ANSI/BHMA Code: A156.13
ANSI/BHMA Series: Series 1000
Backset Depth (Standard): 2 3/4"
Cylinder Format: Conventional
Cylinder Pins: 6 pin, 7 pin
Cylinder Type: Mortise
Door Thickness (Standard): 1 3/4"
Handing: Field Reversible
Latchbolt Throw: 3/4"
Maximum Backset: 2 3/4"
Minimum Backset: 2 3/8"
Maximum Door Thickness: 4"
Minimum Door Thickness: 1 3/8"
Number of Keys: 2
Strike Type: ANSI Straight Lip
UL Listed: Yes
ULC Listed: Yes
Warranty: 5-year limited warranty
