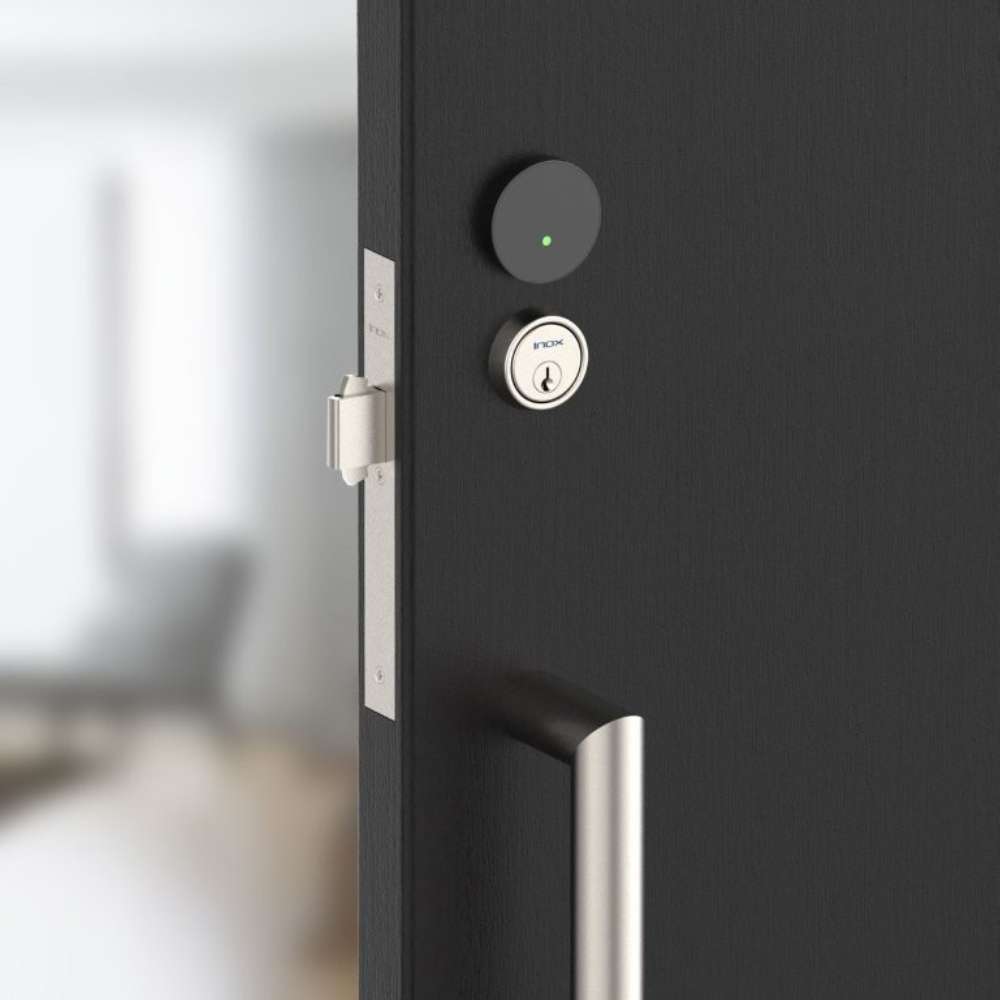

Inox ISMPHSFR345PD9550R1BRWLC32DLH Mort 345 Ent 2-3/4 R1 LH

Inox ISMPHSFR345PD9550R1BRWLC32DLH Mort 345 Ent 2-3/4 R1 LH

• Motor-driven deadbolt provides auto-locking function
• Multi-credential support: Passcodes, RFID FOB/Card/Wristband, and Smart Phone
• Simple Touch-to-Lock, no device or keys needed for secure opening
• Remote access using Wi-Fi or POE gateway
• High Frequency RF13.56 MHz card, fob, wristband
• Passage mode can be activated with interior button
• Unit powered by 4 x AA alkaline batteries with secondary 9V power source for emergency access
• Remote Access and Management via Wi-Fi and Low Energy Bluetooth
• User Capacity: 2000 Total (1000 RF/Passcode and 1000Mobile)
• Inside Egress lever retracts the deadbolt and the latch at the same time
• Audit trails with 100,000 records shows all Lock and Unlock activities

Door Thickness 1-3/4” (45mm) Standard
Backset 2-3/4” (70mm) - 2-1/2” (63.5mm)
Center to Center Distance
Lever to cylinder: 3-7/8” (98mm)
Lever to thumbturn: 2-11/16” (68mm)
Cylinder Schlage C keyway 6 pin, 1-1/4" mortise cylinder with 2 keys (standard). SFIC and LFIC housing and cores available
CAM CAM01-SCL Clover Cam
Material

• Trim: Stainless Steel
• Lockcase: Heavy Gauge Steel
• Deadbolt: Stainless Steel
• Faceplate/Strike: Stainless Steel
• Cylinder: Solid Brass

Finish:

• 32D Satin Stainless Steel
• 32 Bright Stainless Steel
• 19G Graphite Black
• PVD4 Satin Brass available in 205, 221, 243, 244, 276, 318, 319, 320, 321, 346 and 509 levers designs
• CeraMax Ceramic Coating: C19G Graphite Black, C19 Flat Black, CGY Stormy Grey, CDB Dark Bronze
• Please see Finish Solutions on INOX website for special order finishes
