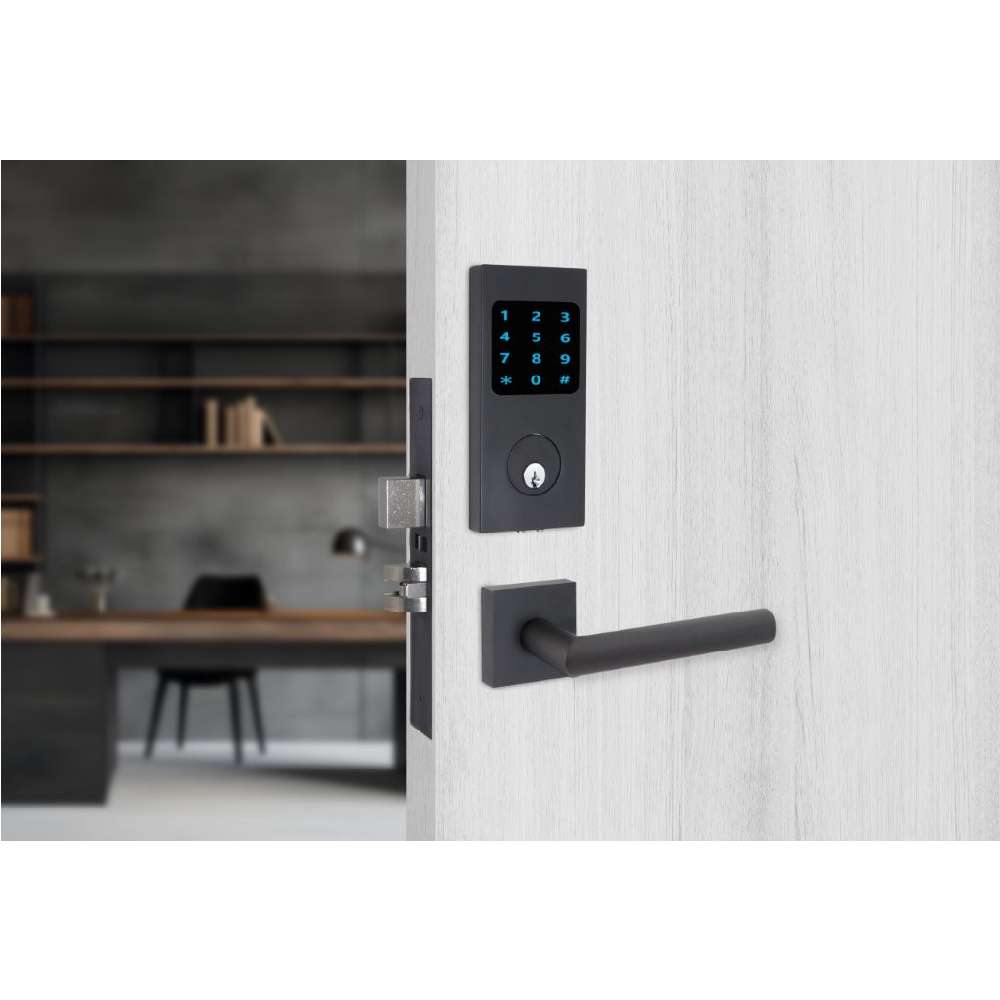

Inox ISMXGS345SFK243MC7438K1LC 243 Ent K1 LC TT04 Thmb StlRH

  • BHMA/ANSI Grade 1, UL 3-hr fire rated commercial mortise lock that can be remotely locked, unlocked, and programmed using smartphone or BLE/WIFI gateway
  • Intuitive mobile INOX app supports multiple users and properties with real time access management
  • Entry function with easily programmable Privacy and Passage modes with optional mechanical key override
  • Simple Touch-to-Lock Keypad, no device or keys needed for secure opening
US$1,265.55

Description:

Description:

Inox ISMXGS345SFK243MC7438K1LC 243 Ent K1 LC TT04 Thmb StlRH

  • Motor-driven deadbolt provides auto-locking function
  • System supports 3 type of Keypad passcodes; auto generated passcode, user-defined passcodes, or 24-hour valid one-time passcode
  • Remote access using Wi-Fi or POE gateway
  • High Frequency RF13.56 MHz card, fob, wristband
  • Passage mode can be activated with interior button
  • Unit powered by 4 x AA alkaline batteries with secondary 9V power source for emergency access
  • Remote Access and Management via Wi-Fi and Low Energy Bluetooth
  • User Capacity: 2000 Total (1000 RF/Passcode and 1000Mobile)
  • Inside Egress lever retracts the deadbolt and the latch at the same time
  • Audit trails with 100,000 records shows all Lock and Unlock activities

CODE COMPLIANCE

  • ANSI/BHMA A156.13 Grade 1 Mortise Lock
  • UL Listed for 3 hour fire doors
  • CAN/ULC S104 up to 3 hours
  • UBC Standard 7-2 (1997) NFPA 252
  • NFPA 80 National Fire Protection - Fire Door Assembly
  • NFPA101 National Fire Protection - Life Safety
  • ANSI A117.1 ADA Accessibility

FINISH

  • 32D Satin Stainless Steel
  • 32 Bright Stainless Steel
  • 19G Graphite Black
  • PVD4 Satin Brass available in 205, 221, 243, 244, 276, 318, 319, 320, 321, 346 and 509 levers designs
  • CeraMax Ceramic Coating: C19G Graphite Black, C19 Flat Black, CGY Stormy Grey, CDB Dark Bronze
  • Please see Finish Solutions on INOX website for special order finishes
