DOOR PREP: Fits standard ANSI/BHMA A156.115 for Mortise Locks.
FOR DOORS: 1-3/4” standard, 2” and 2-1/4” special order from factory.
BACKSET: 2-3/4”
CASE: 12-gauge cold rolled steel mechanism, dichromated for corrosion resistance
ARMOR FRONT: Beveled 1/8” on 2”
STRIKE: Handed Curved Lip Strike
LATCHBOLT: 3/4” Throw, Investment Cast Stainless Steel, Anti-friction
DEADBOLT: 1” Throw, Investment Cast Stainless Steel
HANDING: Most functions field reversible. Specify handing for strikes.

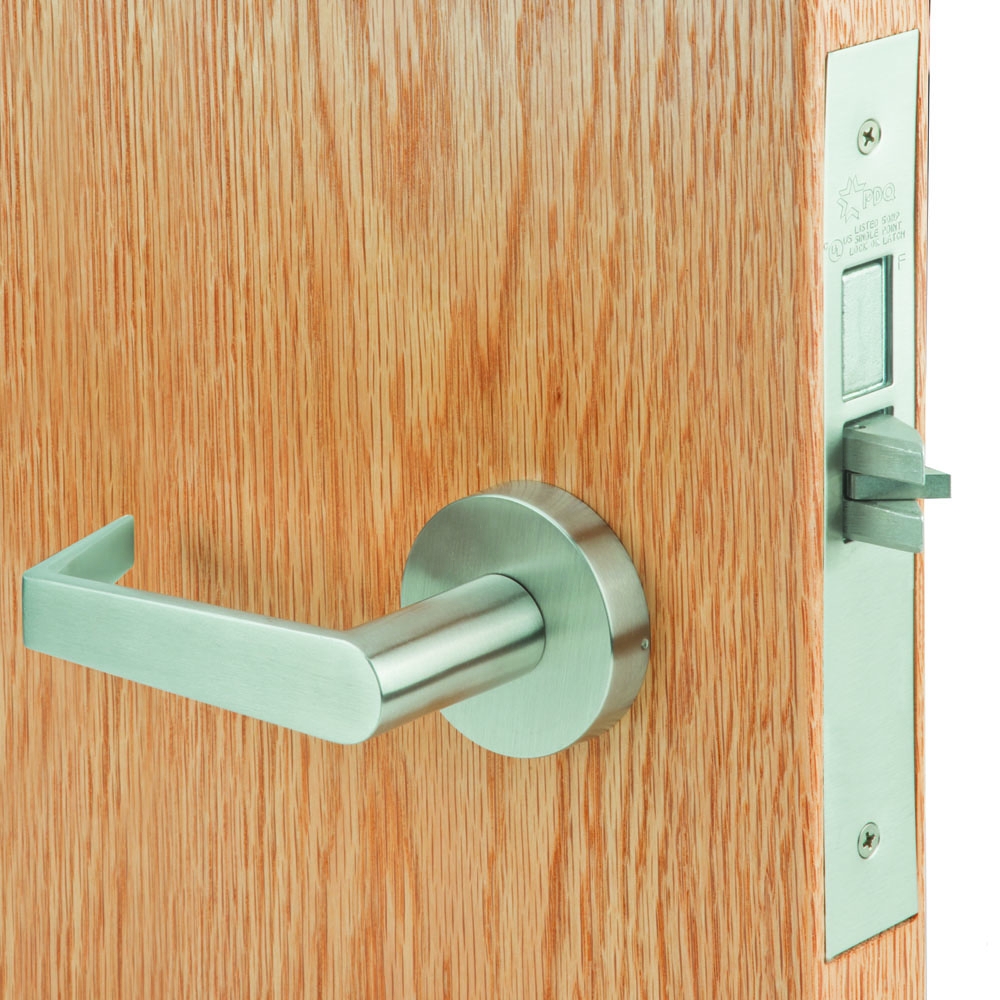

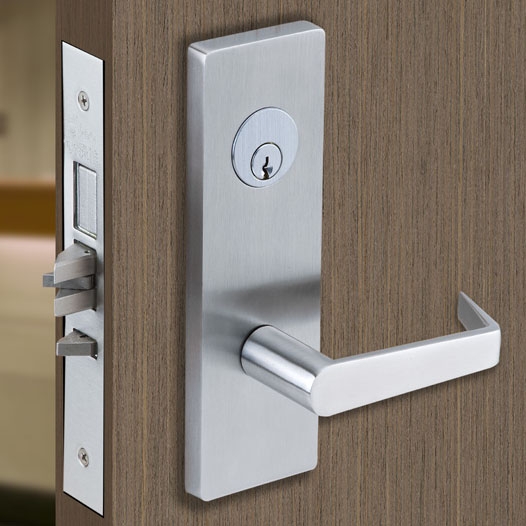

TRIM: EW extra wide escutcheon with Philadelphia lever or SJ rose trim with Philadelphia lever
KEYS: Two (2) per Lock
KEYWAYS: SCC standard (Schlage C)
CYLINDER: Brass Mortise Cylinder
FINISH: 626 (US26D)
