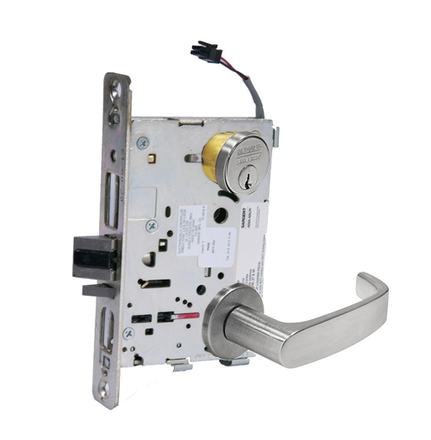

Sargent RX-8271-24V-LNL-26D Electrified Mortise Lock

SKU # SA/RX-8271-24V-LNL-26D

The Sargent RX-8271-24V-LNL-26D Fail Safe Electrified Mortise Lock is an Electrified Fail Safe Mortise Lock for the 8200 Series. The 8200 Series far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

Features include:

  • RX Option - Request-to-Exit or Enter Signaling Switch - Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation.
  • Electrified Fail Secure Lock
  • Key outside retracts latchbolt.  Lever outside retracts latchbolt, except when locked.  Lever outside can only be locked electronically. Lever inside always retracts latchbolt. Auxiliary deadlatch.
  • 24V
  • LN Rose
  • L Lever
  • Door Thickness: 1-3⁄4" (44mm) thick standard.
  • Backset: 2-3⁄4" (70mm) only
  • Handing: Easily field reversible
  • Satin Chrome
US$850.20
