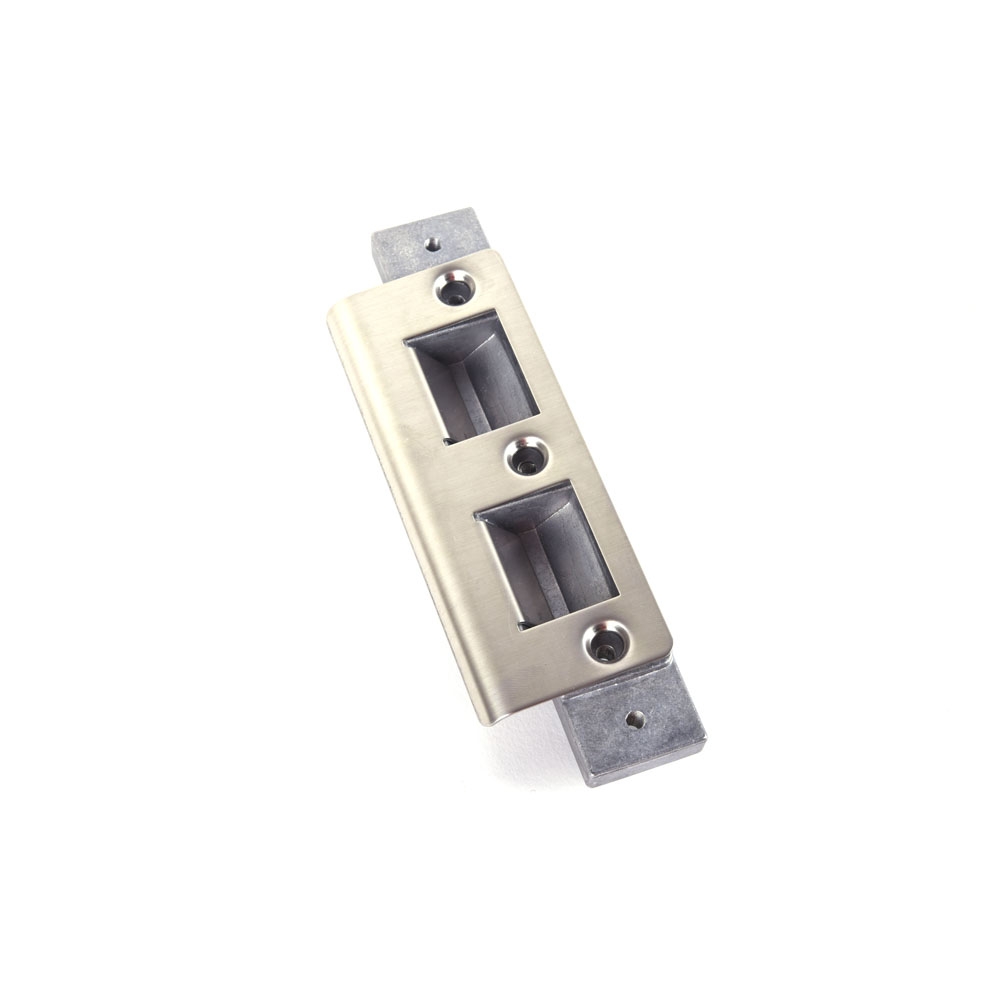

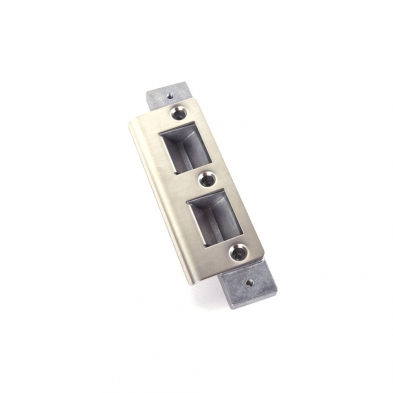

Adams Rite 8455-01 Strike Long Face To Cover MS Strike Prep
Designed for use in single door applications.
Certifications:
- UL 305 Panic Hardware
- ANSI/BHMA A156.3, Grade 1
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing: Specify handing and bevel if applicable.
Push bar Length: Standard sizes dimensioned for 30" [762.0mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48"[1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
Backset: 31/32" [24.6 mm], 1-1/8" [28.6 mm], or 1-1/2"[38.1 mm]. Fits standard cutout used for the Adams Rite 4900 Heavy Duty Deadlatch on narrow stile aluminum doors.
Door Thickness: Suits 1-3/4" [44.5 mm] standard. Device can be modified for thicker doors using Thick Door Kit available separately, or for thermal doors using Thermal Door Kit available separately.
Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
Fasteners: Standard machine screws.
Cylinders: Accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to1-1/4" [31.8 mm]. Available separately.
Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard 1" [25.4 mm] length,1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Function 03 is not applicable to 8475 Mortise Mid-Panel Exit Device.
Entry Trim Functions: For entry trim function 08 (key locks/unlockslever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
Bolts and Strikes: Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw. Solid brass bolt. A variety of strikes are availablefor different applications:
Standard strike of stainless steel included, Extended Lip Strike 8460 available separately, Long Face Strike 8455-01 available separately.
Shipping Weight: 11 lbs [4.99 kg]
