Craftmaster HMFRMMORT Sgl 3x7 Hllw Mtl Mort Hng Mrt Clsr Thrs

SKU # CR/HM-FRM-MORT-KIT

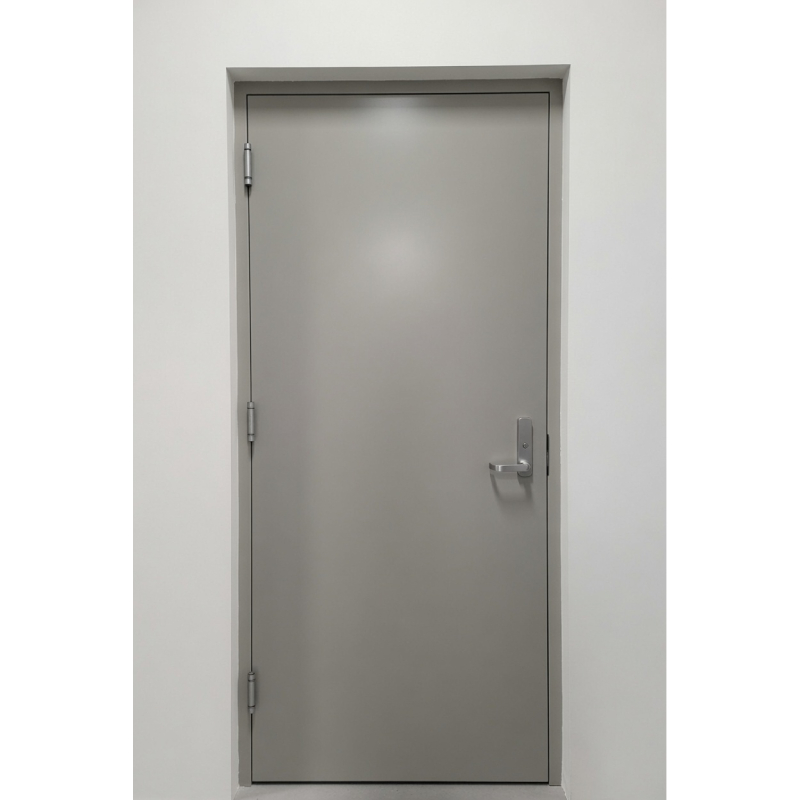

Craftmaster HM-FRM-MORT-KIT Single 3x7 Hollow Metal Frame Mort Hnges Mort Closer Thres Gasketing

Features
  • 1-3/4" thick
  • Cold rolled steel face skin
  • 18 gauge face skin
  • Perimeter channel construction
  • Center seam edge design
  • Handed door design
  • Polystyrene core
  • Maximum opening size, 5' x 10' single
  • Maximum opening size, 10' x 10' pair
  • Factory applied rust inhibiting primer finish
  • Fire Rated up to 3 hours
  • STC 24 Rating - Polystyrene Core
  • 0.37 Thermal U-Factor / QMAX core with masonry frame
  • 0.35 Thermal U-Value / QMAX core with Mercury 3 Thermal Break Frame
  • 14 or 12-gauge hinge reinforcement

Contact us to review your product needs!

Call us @ 800-221-3212 Chat with US Contact Us via email

Register/Log In for Pricing Info!

Comments or instructions

Description:

Description:

Craftmaster HM-FRM-MORT-KIT Single 3x7 Hollow Metal Frame Mort Hnges Mort Closer Thres Gasketing

Benefits

  • Fully bonded polystyrene core for total surface support
  • Rugged perimeter channel construction adds strength and durability
  • Designed to outperform all test criteria available for physical endurance
  • Exceeds the ANSI A250.4 performance and acceptance criteria achieving 2 million cycles, 2 times the Level A requirements

Options

  • Cold rolled, A60 galvannealed or G90 galvanized steel face skins
  • QMAX, polystyrene or honeycomb core
  • Flush, Full Glass, Half Glass, Narrow Lite, Vision Lite, Louvers, or Embossed panel - Polystyrene only ( 1, 2, and 6) door design
  • Center seam or seamless edge design
  • 20, 18, 16, and 14 gauge face skins

Applications:

Classrooms, Clean Rooms, Condominiums, Conference Rooms, Cross Corridor Doors, Entrance Doors, Hazardous Environments, Historical Buildings, Laboratories, Office Doors, Patient Rooms, Pharmaceutical Storage Rooms, Stairwell Doors, Commercial and Corporate, Healthcare, Cannabis, Higher Ed, K-12, Manufacturing, Mixed-Use, Multi-Family, Off-Campus Housing, Senior and Assisted Living, VA Hospitals



Specifications:

Literature:

Product Videos:

Product Videos:
