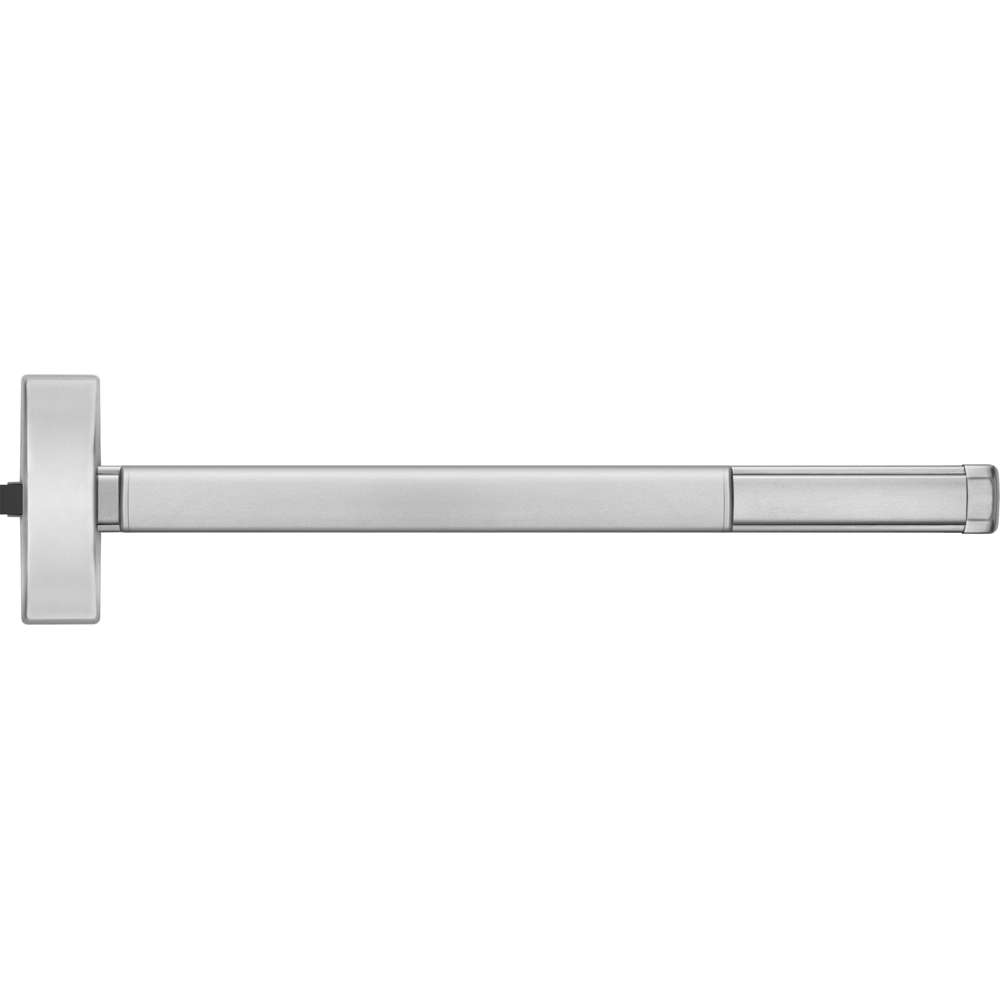

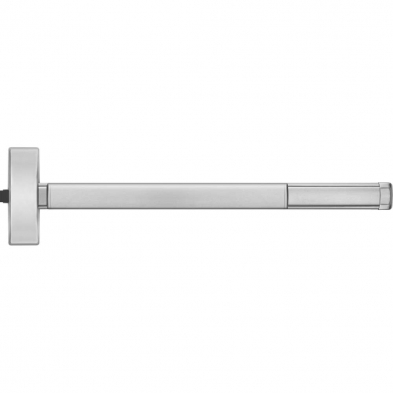

Precision 3R0FL21084908ALHRB630 Rim FR Exit Device
- Trim Function: No Cylinder Lever/Knob Always Active Prep (No Trim)
- Door Sizes: 36" For 2'-7" to 3' Width - 48" For 3'-1" to 4' Width
- Dogging: Less Dogging
- Handing: Field Reversible
- Door Thickness: Available for 1-3/4" to 2-1/4" thick
- Device: Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation
- Base Material: The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
- Chassis: Investment Cast Steel, Zinc Dichromated.
- Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.
- Strikes: No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard.
- Touchbar Height: 39-15/16" from floor standard. May be varied as situation dictates.
- Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
- UL Listed: Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
- ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.
- Cylinders: Rim Type, not furnished standard.
- Finishes: 605, 606, 612, 613, 622, 625, 626W, 628, 630, 690
Retrofit Applications: The 2100 and FL2100 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2108 R4908A).
The 21 Series Device is designed to be compatible with many manufacturers’ Access Control exterior trim. The device incorporates a center driven cam to receive the tailpiece of the access control product. The tailpiece rotation required to retract the latch is a minimum of 50 degrees.
Electrical Options
MLR - Motorized Latch Retraction
ELR - Electric Latch Retraction
The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.
DE - Delayed Egress
The Delayed Egress (DE) Exit Device provides a controlled egress for openings which require Panic or Fire Exit Hardware for safe egress. It is a self contained exit device, which when armed will deny exit to unauthorized personnel for 15 or 30 seconds, while simultaneously sounding a local or remote audible alarm. The Remote Monitoring feature will alert the security personnel that an attempt is being made to exit the opening. After the 15 (or 30) second delay of egress period the device will function as a standard exit device for safe egress.
TS - Touchbar Monitoring
TS - (SPDT - Single Pole, Double Throw) version allows for interface with one external component. A (2) wire power transfer is required, not furnished standard.
