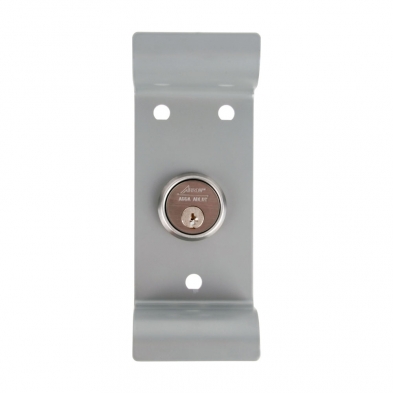

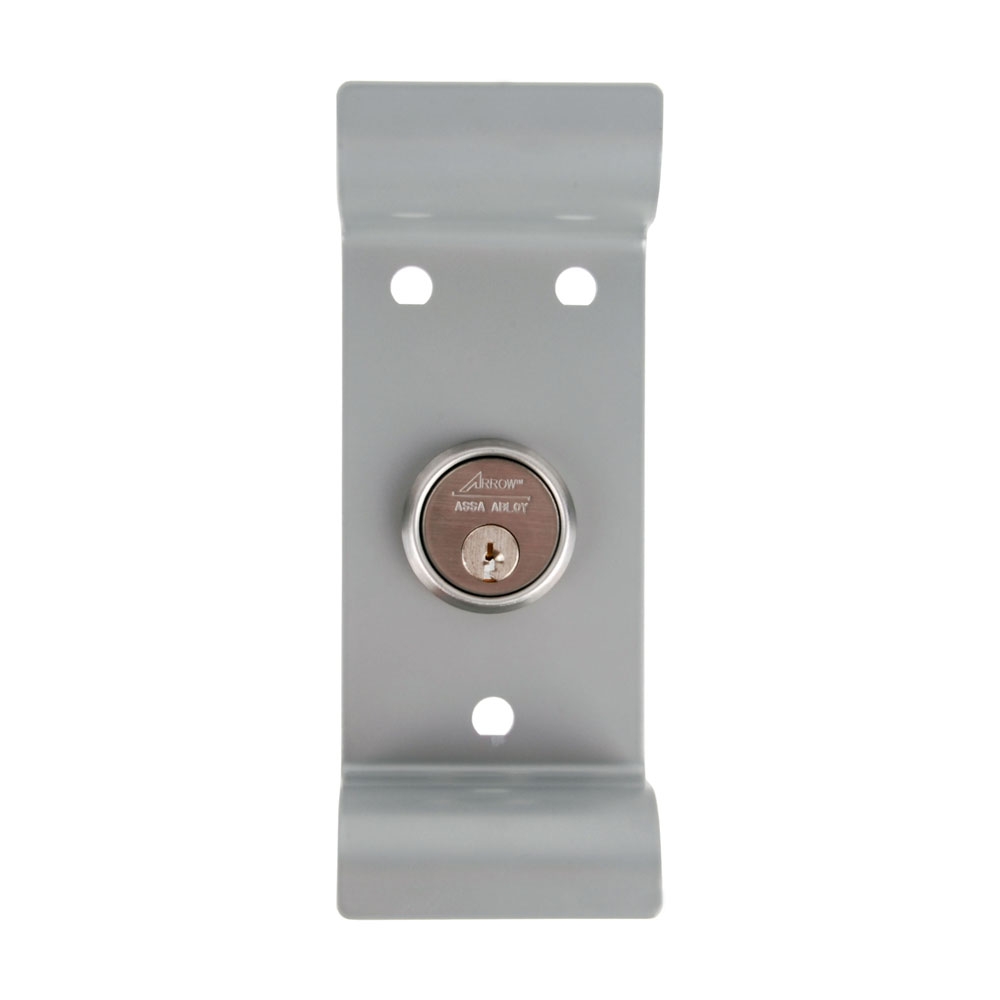

Arrow Lock SF12-AL Nightlatch Wing Pull, S1250
The Arrow S1250 Series Rim Exit Device offers a reliable and dependable solution at a price you can afford. This exit device is BHMA Certified Grade 1 and is ADA compliant.
Benefits
- BHMA Certified Grade 1 and ADA-compliant
- Non-handed
Specifications
- Cylinder Format: Conventional, Small Format
- Door Thickness (Standard): 1 3/4"
- Handing: Non-handed
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/4"
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 3-year limited warranty
- Chassis & Cover: Non-ferrous alloy
- End caps: Metal
Doors:
- 1-3/4″ thick
- 4-1/2″ minimum stile
Handling: Non-handed
Dogging: Allen-type key standard, cylinder available.
Latchbolt: 3/4″ throw, stainless steel
Rail Assembly: Steel
Rail Size:
- F – for 32-1/4″ to 36″ door widths
- E – 24″ for 24″ to 32″ door widths
- G – 48″ for 36-1/4″ to 48″ door widths
Finishes: AL, BRZ (sprayed finishes)
Certification
- ANSI/BHMA A156.3, Grade 1
- Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
- Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix “F” before part number.
- ANSI A117.1 Accessibility Code
- Fire Exit Hardware for wood doors, listed up to 1-1/2 hour, B label doors
- All exit devices comply with life safety code NFPA 101.
- All fire rated devices comply with fire door and window code NFPA80.
