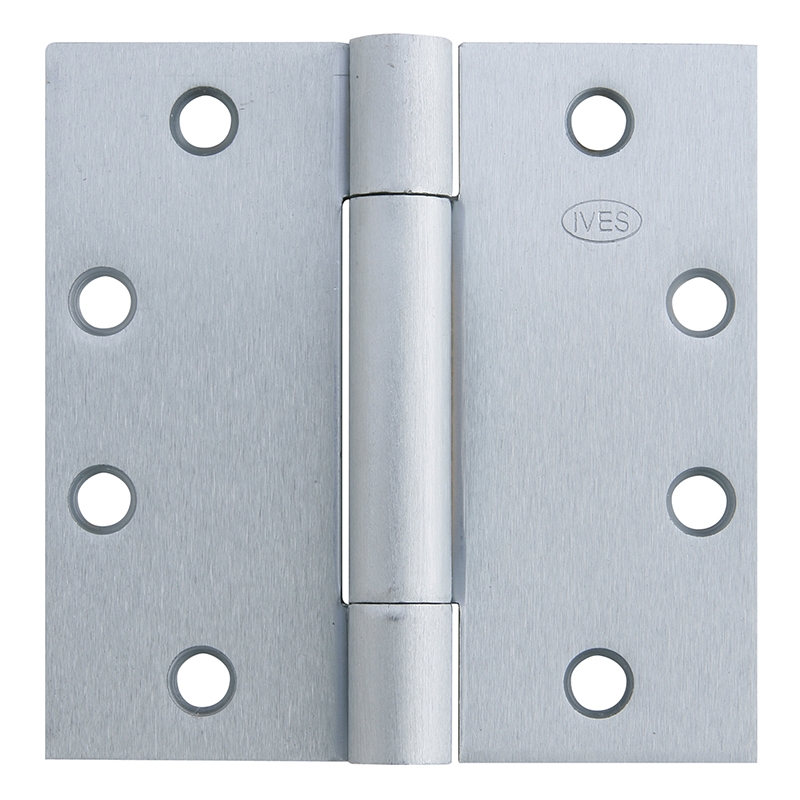

Ives-Glynn Johnson 3CB1-5.0X4.5-652 Concealed Bearing Hinge

The Ives-Glynn Johnson 3CB1-5.0X4.5-652 Concealed Bearing Hinge is a Concealed Bearing Hinge in Satin chrome.

Features include:

• Satin chrome finish
• 5.0" x 4.5"
• 3 Knuckle, concealed bearing full mortise hinge
• Recommended for medium weight doors (<150 lbs)
• Recommended for medium frequency usage (<400 cycles per day)
• Made with two concealed nylon bearings
• Recommended for use with a door closer
• Packed with fasteners for hollow metal and wood doors
• 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
• 10-24 x 1/2 UFPHMS
• Certified to ANSI/BHMA A156.1 for performance standards
• Meets ANSI/BHMA 156.7 for template hinge dimensions
• UL Classified for windstorm rated assemblies - R37965
• UL Listed, 3 hour fire doors
