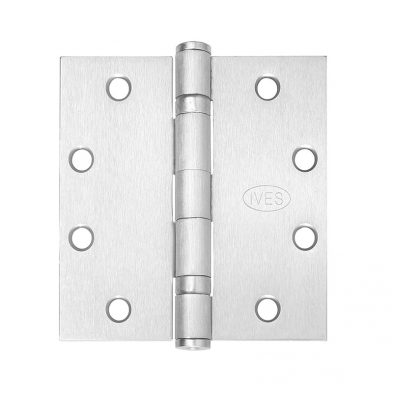

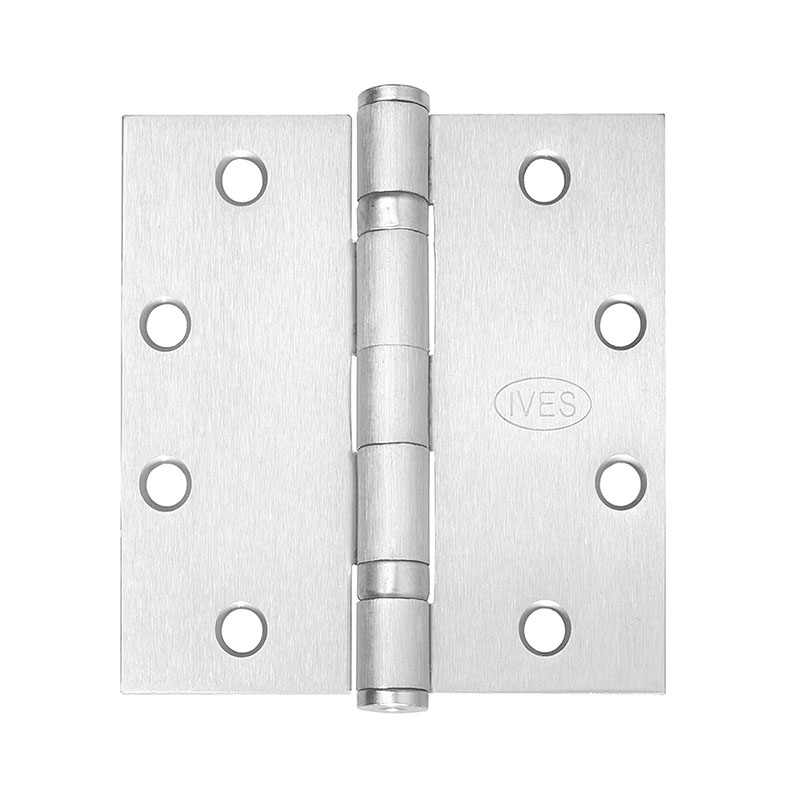

Ives-Glynn Johnson 5BB1-5.0X4.5-652-NRP Ball Bearing Hinge

SKU # IV/5BB1-5X4.5-652-NRP

The Ives-Glynn Johnson 5BB1-5.0X4.5-652-NRP Ball Bearing Hinge is a 5-Knuckle Ball Bearing Full Mortise Hinge in Satin Chrome with a Non Removable Pin.

Features include:

  • Non-removable Pin
  • Satin Chrome finish
  • 5.0" x 4.5"
  • 5 Knuckle, ball bearing full mortise hinge
  • Recommended for medium weight doors (<150 lbs)
  • Recommended for medium frequency usage (<400 cycles per day)
  • Made with two ball bearing assemblies
  • Recommended for use with a door closer
  • Packed with fasteners for hollow metal and wood doors
  • 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
  • 10-24 x 1/2 UFPHMS
  • Certified to ANSI/BHMA A156.1 for performance standards
  • Meets ANSI/BHMA 156.7 for template hinge dimensions
  • UL Classified for windstorm rated assemblies - R37965
  • UL Listed, 3 hour fire doors
US$22.44
