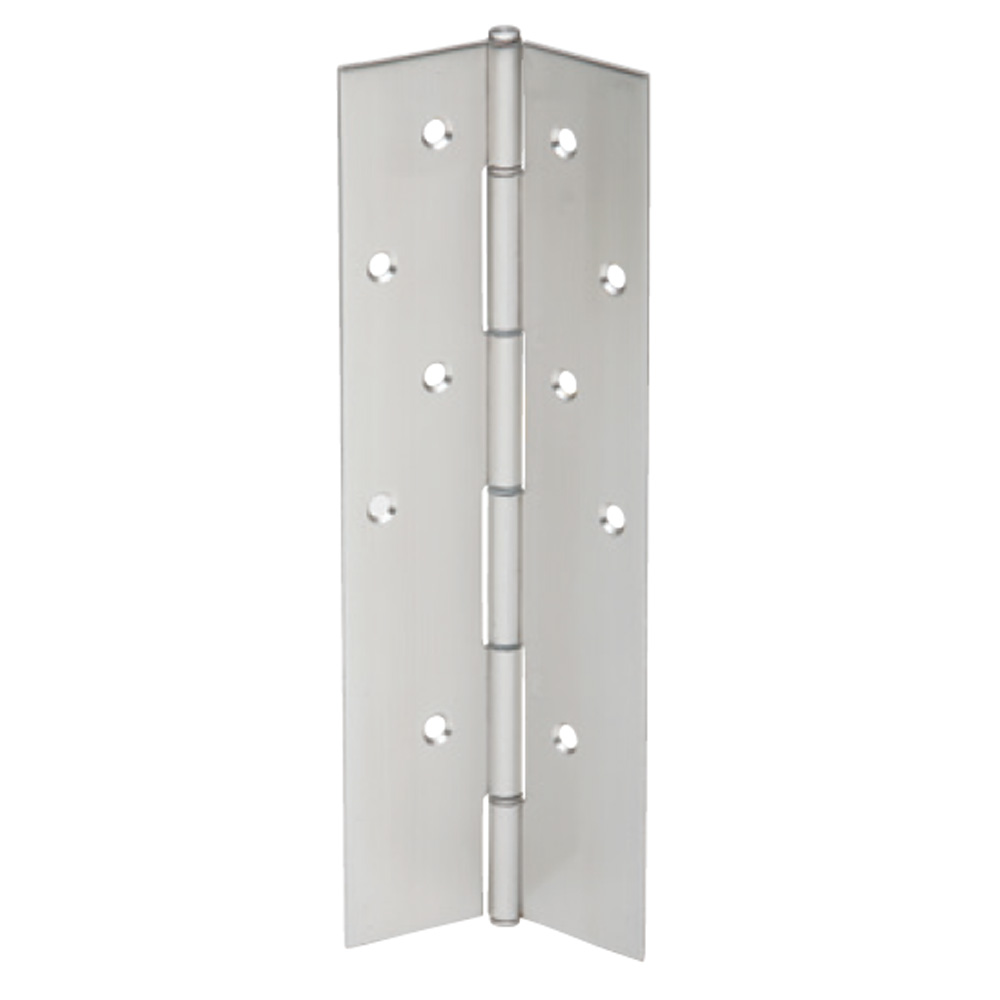

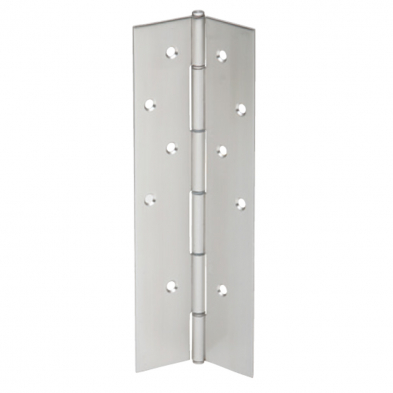

Ives-Glynn Johnson 700-83IN-US32D Continuous Hinge

The Ives-Glynn Johnson 700-83IN-US32D Continuous Hinge is a Continuous Hinge in Satin stainless steel.

Features include:

• The standard series pin and barrel continuous hinges features twin self lubricated nylon bearings with a stainless steel pin.
• Satin Stainless Steel
• 14 Gauge stainless steel
• Length  83"
• Can be cut to length during installation.
• For doors up to 200 lbs, no door reinforcement is required.
• For doors between 200 and 300 lbs, a 16 gauge channel in the frame is required.
• For doors up to 600 lb (max door width of 4'0"), rivet nuts are required in the frame in addition to the frame reinforcement.
• All Ives pin and barrel hinges are tested and approved UL 10C (3 hr).
• 700 Series meets ANSI 156.26, Grade 1
• HD Models, Grade 1, 150lb door test
• CS Series models certified ANSI 156.26, Grade 1, 150lb door test
