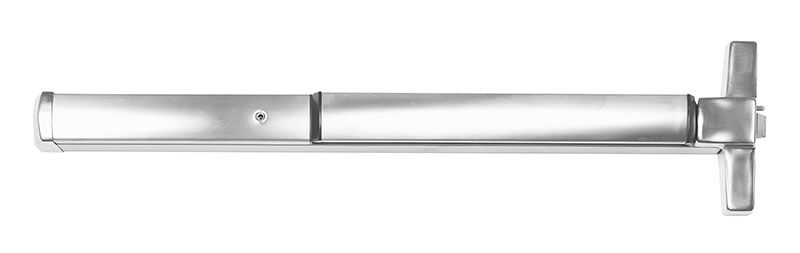

Corbin Russwin ED4200-630 Narrow Stile Rim Exit Device
Designed for applications on narrow stile full glass, aluminum, and metal doors in high-use and high-abuse situations, the ED4000 Series pushpad exit device can be teamed with a variety of Corbin Russwin trims to provide desired functions, styles, and finishes in new construction sites and renovations.
Benefits
- Security: Multiple security features provide additional resistance against vandalism and unauthorized entry.
- East of Install & Maintenance: Modular components and robust design allow for quick and easy installation, and maintenance free operation.
- Aesthetics: Attractive, minimalist design featuring many levers and architectural finishes to blend with any decor.
- Sustainable: Less product replacements due to long life and high post-consumer recycled content – contributing to your sustainability efforts.
Specifications:
ANSI/BHMA Grade: Grade 1
Door Height: 96"
Door Thickness (Standard): 1 3/4"
Maximum Backset: 2 3/4"
Maximum Door Width: 48"
Minimum Door Thickness: 1 3/4"
Minimum Door Width: 24"
Push Bar Length: 36"
Stile Width: 2"
Warranty: 5-year limited warranty
