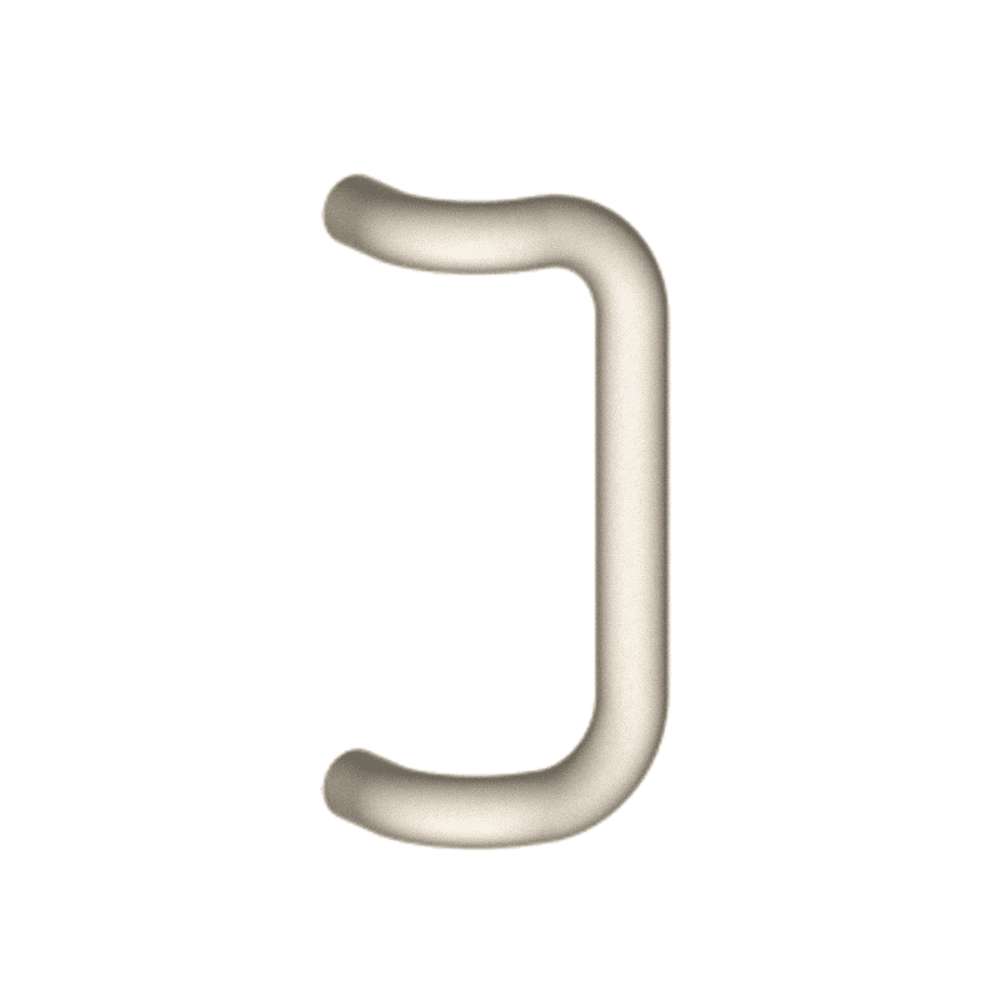

Hager 12L-US32D Steel 12 Center to Center Offset Round Pull
Applications
- 8” (203 mm) CTC- 12G
- 10” (254 mm) CTC- 12J
- 12” (305 mm) CTC- 12L
Certifications
- EPD
- Meets ANSI A156.6 for J402 Pulls
Clearance 1-3/4"
Door Thickness 1-3/4" (45 mm)
Fasteners Two 5/16" - 18 thru-bolts with washers
Finishes US3, US4, US10, DBZ, US19, US26, US26D, US28, US32, US32D
Handicap 2-1/2" (64 mm) Clearance available on special order. Add prefix "H" to number (H12L, for example).
Material Aluminum, Brass, Bronze, Stainless Steel
Offset 3" (76 mm)
Optional Features: For 45° offset, add prefix "X" to number (i.e. X12E). If ordered with tempered glass, specify glass thickness and hole size. Other centers, sizes and finishes available via special order.
- Product Description 90° Offset Pull - Round
- Projection 2-3/4" (70 mm)
- Pull Clearance 1-3/4" (45 mm)
- Pull Diameter 1" (25 mm)
