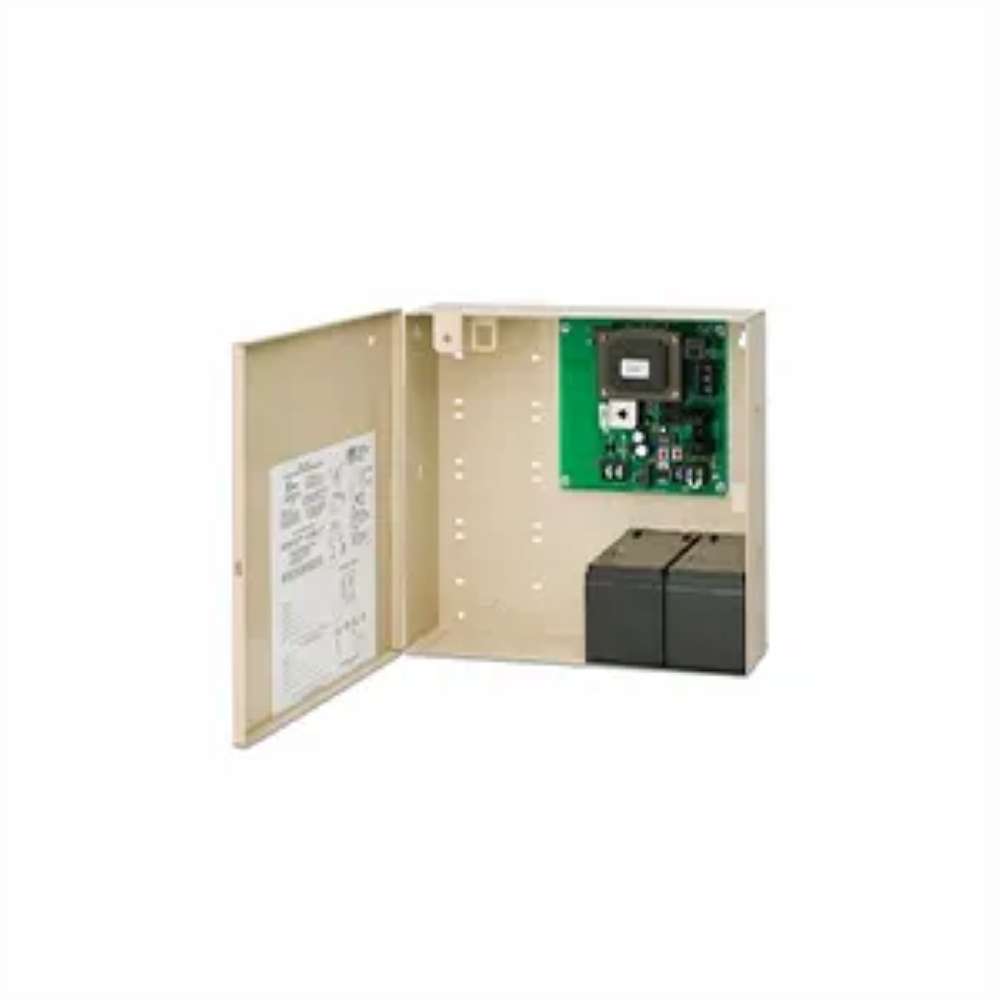

Hager 2909-1224VDC 12/24Vdc 2 Amp Power Supply 120Vac
Provides up to 2 amps of 12 or 24 volt DC power for all Hager Electrified Products
Accessories
- 2-679-0661 - 5 Amp hour battery backup
- 2-679-0662 - 12 VDC output regulator module (Provides 12VDC, 500mA output while power supply is configured for 24VDC)
- 2-679-0664 - Universal relay module (Provides 2 programmable relays. See installation instructions for more details)
- 2-679-0703 - Sequencer Module (Provides sequencing commonly used on openings with auto operators)
- 2-679-0704 - Access Control Module (Commonly used to isolate circuit when using access control panels)
- 2-679-0705 - 16 Amp Power Boost Module (Used in high current applications like solenoid latch retraction exits)
- 2-679-0706 - Power Supply Monitor Module
Applications
- Provides up to 2 amp of 12 or 24 volt DC power for all electrified products
- Used with electric locks, strikes, magnetic locks, delayed egress, and magnetic hold opens
- Regulated modular design allows customization of each power supply to meet any application
- Filtering and output voltage regulation provides protection and ensures the longevity of all system components
Electrical Specifications
- 800mA @ 115 VAC, 50/60Hz (230 VAC optional)
- 2A @ 12/24 VDC - Field selectable
- 13.5/27 VDC, 500 mA
Gauge 20 Gauge Steel
LED Indicators
- Amber - AC and DC voltages are OK
- Green - No DC output
- Red - No AC input, powered by batteries
Size 12" Height, 12" Width, 4" Depth
Voltage
- 12/24VDC Field Selectable
- 230V/50Hz
