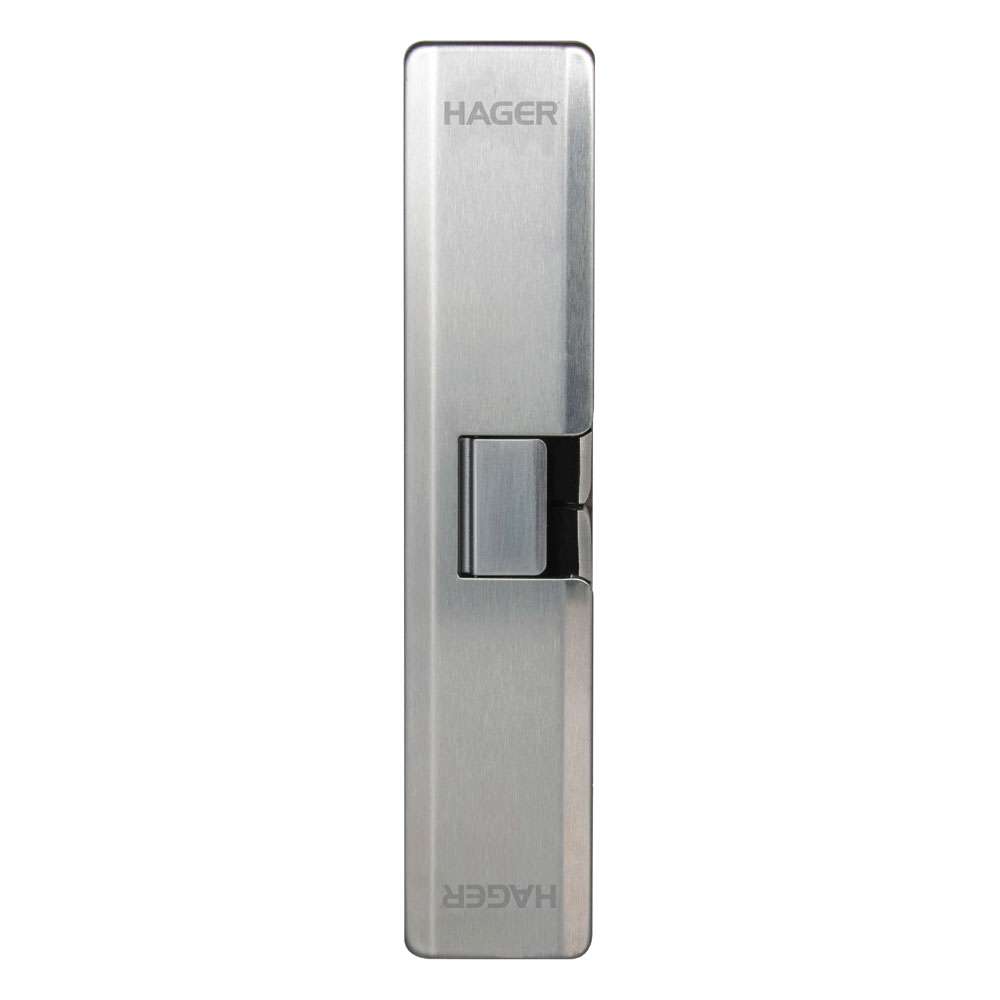

Hager 2945-US32D-RIM Steel Surface Electric Rim Exit Devices
Hager 2945 Universal Electric Strike – For Rim Exit Devices (up to 3/4″ Pullman Latch), 12/24V AC/DC, ANSI/BHMA Grade 1, UL Listed 3-Hour Fire-Rated
The 2945 Series rim strike is Grade 1 classified and compatible with most 3/4″ pullman latches. The 1,500 lbs. of static strength ensures security while its 1 million cycle testing offers durability. The 15 lbs. preload is unique to Hager and prevents the strike from failing to release due to air (stack) pressure, misalignment, and inexact installation.
- Surface mounts to metal or wood door frame
- Accepts up to 3/4″ Pullman latchbolt
- 12/24V AC/DC
- Fail Safe/Fail Secure, Field Selectable
- 15 lbs. preload
- 1,500 lbs. of holding force
- Metal mounting template
- Latchbolt monitor switch
- 9-1/8″ L x 1-7/8″ W x 3/4″ D
- ANSI A156.31 Grade-1
- UL10C 3-Hour Fire Rating
- Burglary UL 1034
- Access Control UL294
- Each unit includes a filler bar (#100206669) that is designed to work with Hager’s 4501 Rim Exit Device
