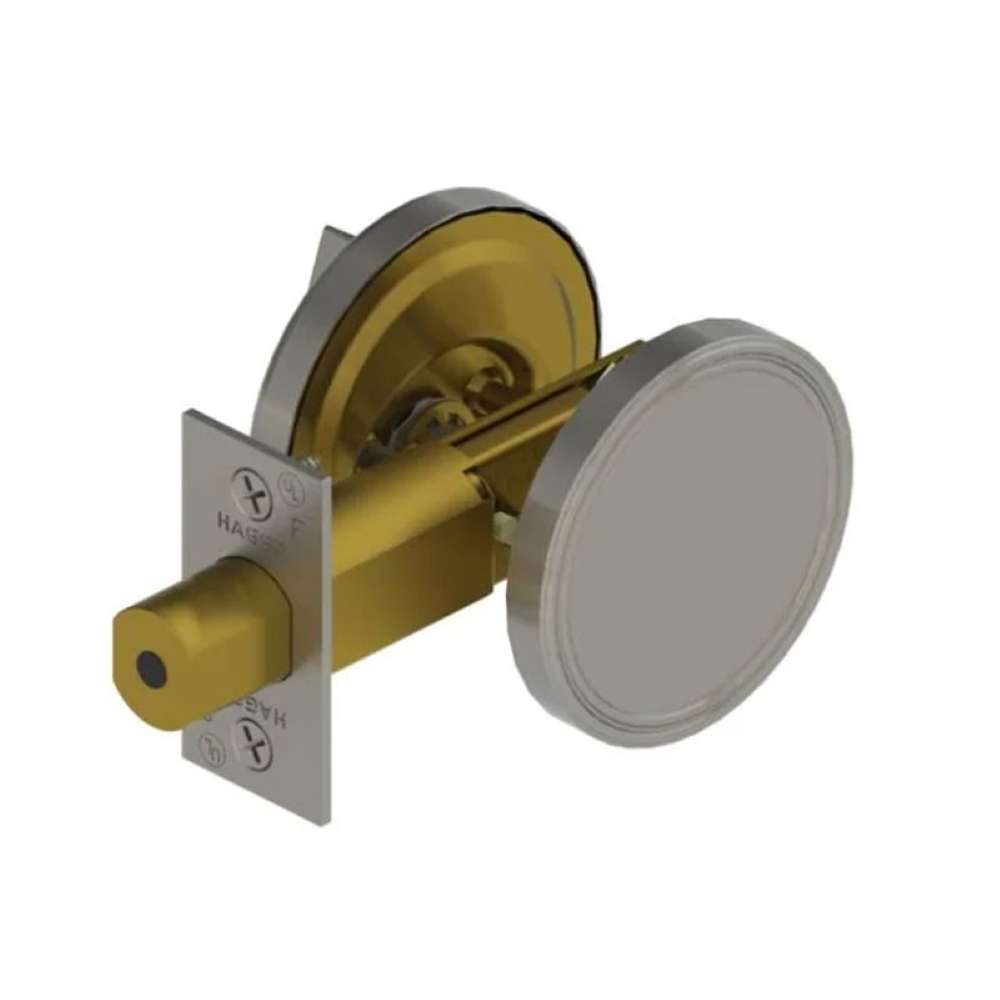

Hager 3220-ADJ-US26D Thumbturn Only Blank Plate Ddblt Chrm
Deadlock Is Comprised of:
- Cylinder of your choice in exterior and interior finish of your choice
- Backset of 2-3/4"
- Two operating keys-keyed different
- Schlage C keyway
- Drilled 6-pin, keyed 5-pin cylinder
- Latchbolt
- Square corner strike with dustbox
- Door thickness of 1-3/4"
Available Finishes: Bright Brass; Satin Brass; Satin Bronze; Antique Bronze Oiled; Satin Chromium Plated; Bright Stainless Steel; Satin Stainless Steel (Finishes comply with BHMA codes. See Product Data Tab.)
Option of split finish available: Lock can be purchased with one finish for the outside section of the lock and another for the inside.
Functions:
- 3214-Double Cylinder: Locked or unlocked with key from either side. Bolt automatically deadlocks when fully thrown.
- 3215-Cylinder x Thumbturn: Locked or unlocked by key from outside, or thumbturn from inside. Bolt automatically deadlocks when fully thrown.
- 3220-Thumbturn with Blank Plate (no cylinder): Deadbolt thrown or retracted, from the inside, by thumbturn unit only. Blank plate on outside. Bolt automatically deadlocks when fully thrown.
- This option is not available with Small Format Interchangeable Housing.
- 3221-Thumbturn only (no cylinder): Deadbolt thrown or retracted by thumbturn unit only. No outside trim. Bolt automatically deadlocks when fully thrown.
- This option is not available with Small Format Interchangeable Housing.
Standard Door Prep:
- Cylinder hole: 2-1/8" diameter (cross bore)
- Latch hole: 1" diameter (edge bore)
- Exposed Trim: Wrought brass, bronze or stainless steel.
- Mechanism: Steel, zinc dichromate plated
- Keys: Two operating keys, which are keyed differently, supplied per lock. \\
Keying Options:
- Keyed alike-option for 3114-double cylinder function
- MK-Master key
- CMK-Construction master key
- GMK-Grand master key
- SK-Customer specified keying
- "0" bitted cylinder
Keyways: Standard keyway is Schlage C.
Cylinder Options:
- Conventional cylinder
- Brass, Drilled 6-pin, keyed 5-pin. Standard.
- Brass, Drilled 6-pin, keyed 6-pin. Optional.
- Small Format Interchangeable Core Housing Option: The inner core, containing the keyway, is removable and changeable for security purposes.
Door Thickness:
- 1-3/8"-1-3/4" Thick. Standard.
- 1-3/4" Thick only. 3214 SFIC.
- 2-1/4" Thick. Optional.
Backset:
- 2-3/4". Standard.
- 2-3/8". Optional.
- 2-3/8"-2-3/4" adjustable backset supplied with 3220 and 3221 (not available for 3214/3215).
Latchbolt:
- 1" throw-brass with concealed hardened steel roller to prevent sawing or cutting.
- 1-1/8" x 2-1/4" square corner faceplate.
Strikes:
- 3930 square corner, 1-1/8" x 2-3/4" with dustbox. Standard.
- 3929 ASA deadbolt strike. Optional
