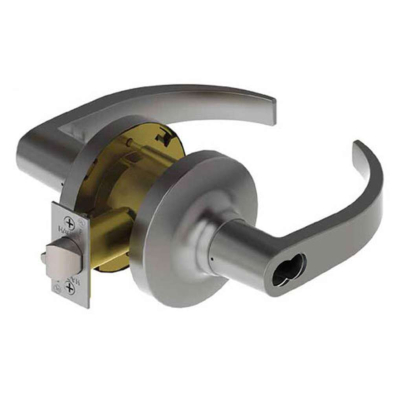

Hager 3480IC-EUEL-WTN-26D Elec Store Withnell Chrome Grade 1
Applications
- Extra Heavy Duty Commercial
- Industrial
- Institution
Backsets
- 2-3/4" (70mm) - Standard
- 2-3/8" (60mm) - Optional
- 3-3/4" (94mm) - Optional
- 5" (128mm) - Optional
Certifications
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- UL10C Positive Pressure Rated
- BHMA Certified ANSI A156.2, Series 4000, Grade 1
- ANSI A250.13 Severe Windstorm Compliant
- Miami Dade County, FL NOA #22-0816.08
Cylinders/Cores
- Keyed Different - standard
- Cylinder drilled 6 pin, Keyed 5 pin - standard
- Other Keying options, including 6 pin keyed, available from factory
- Zero bit cylinders will be 6 pin keyed
- SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
- LFIC Zero-BIt or combinated, brass 6 pin cores sold separately
Door Thickness
1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim
- Wrought brass, bronze, and stainless steel
- Lever is zinc based, plated to match BHMA symbols
Finishes US3, US4, US10B, US26, US26D and BLK
- Anti-Microbial Coating (US26D finish only)
Functions Storeroom (F86)
Keyway Schlage C - Standard, Other keyways optional
Latchbolt Type
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
- Deadlocking latchbolt prevents manipulation when door is closed
- 3/4" (19 mm) throw latchbolt available
Lever Options
- Archer, August and Withnell
- Lock Chassis
- Heavy gauge steel, zinc dichromated for corrosion resistance.
- Thru-post mounted.
Notes
- SFIC option available (Cores are sold separately - standard)
- LFIC option available (Cores sold separately - standard)
Options
- Lead Lining
- Tactile Warning
- Split Finish
- Rose Diameter
- 3-17/32" (90 mm)
- Standard Door Prep
- 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore)
- Latch hole - 1" (25 mm) diameter (edge bore)
Strikes
- 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
- 3933 T-Strike - Optional
- 3934 Full Lip Strike - Optional
- 3958 Full Lip Strike, Round Corner - Optional
