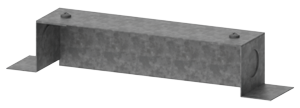

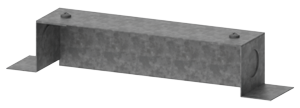

Hager 430 Commercial Hinge Component, Mortar Box

SKU # HG/430

The Hager 430 Commercial Hinge Component, Mortar Box is a Commercial Hinge Component, Mortar Box.

Specifications include:

  • Commercial Hinge Component
  • Mortar Box
  • Full Mortise - Concealed Air Transfer
  • Removable back for servicing
  • Serves as mortar shield
  • Top and bottom knockouts for standard conduit fitting
  • Fits hinge reinforcements for 4 1/2'' (114 mm) or 5'' (127 mm) architectural grade hinges.
  • Material: - Galvanized Steel
  • Size: - 9" (229 mm) length with tabs, 7" (178 mm) inside, 1 3/4" x 1 3/4" (45 x 45 mm) inside dimension.
  • Additional Notes: - Hinge testing conforms to ANSI A156.1. Furnished with screw hole locations that conform to standards approved by ANSI A156.7.
US$37.59
