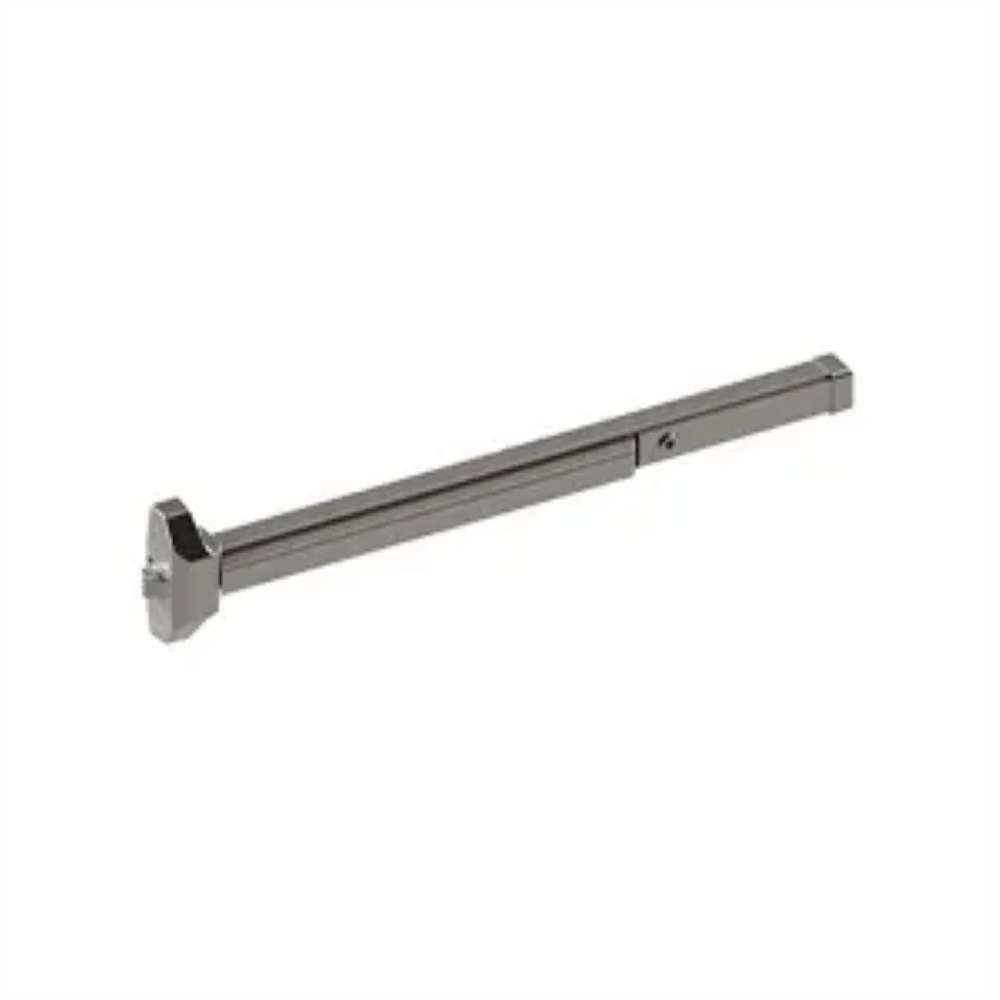

Hager 4701R-3-32D-LHR Standard Exit Rim Device 36in Stl LHR
Applications Commercial
Certifications
- ANSI/BHMA A156.3-2014 Grade 1
- UL305 Listed for panic hardware
- UL/cUL Listed for up to 3 hours for "A" labeled doors
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Warnock Hersey listed for up to 3 hours with fire rated removable mullion
- Complies with ANSI 117.1 for accessible buildings and facilities
Cover Cast brass, bronze, stainless steel, zinc
Cover Tube Painted steel, plated steel, stainless steel
Dogging Hex key dogging standard on panic-rated devices
Door Thickness 1-¾" (44 mm) - standard
Door Width
- 36" (914mm) field sizeable to 30" (762 mm) door
- 48" (1219mm) field sizeable to 36" (914 mm) door
End Caps Painted steel, plated steel, stainless steel
Fasteners Wood and machine screws,
Thru-bolts
Finishes US3, US32D, ALM, DBZ
Functions
- 01 - Exit Only (device)
- 02 - Dummy (47DT)
- 03 - Night Latch (47KN)
- 08 - Key in Lever, key locks or unlocks lever (47KE)
- 14 - Blank Escutcheon, always operable (passage) (47BE)
Latchbolt Type 5/8" (16mm) throw, pullman type with automatic dead-latching, stainless steel
Projection
- 2-7/16" (62mm) in undogged position
- 1-3/16" (30mm) in dogged position
Stile Width
- 4-1/2" (114mm) - minimum stile width required for single door and 5/8" (16mm) stop
- 4-1/2" (114mm) - minimum stile width required for double door x surface vertical rod device with double door strike
- 5" (127mm) - minimum stile width required for double doors with 2" (51mm) mullion
- All stile widths are measured from door edge
Strikes
- Stainless steel with plated roller - included standard with panic devices
- Solid stainless steel - included standard with fire-rated devices
- Surface applied to frame with slotted holes for easy adjustment
- Optional double door strike for use with surface vertical rod and rim devices
- For Rim x Rim x Mullion the 4916 strike is required on a fire-rated opening
Trim
- Archer, August, or Withnell lever with escutcheon
- Archer, August, Withnell lever with key-in-lever trim
- Raised lip pull
- Pull plate trim
- Rim cylinder x optional pull
