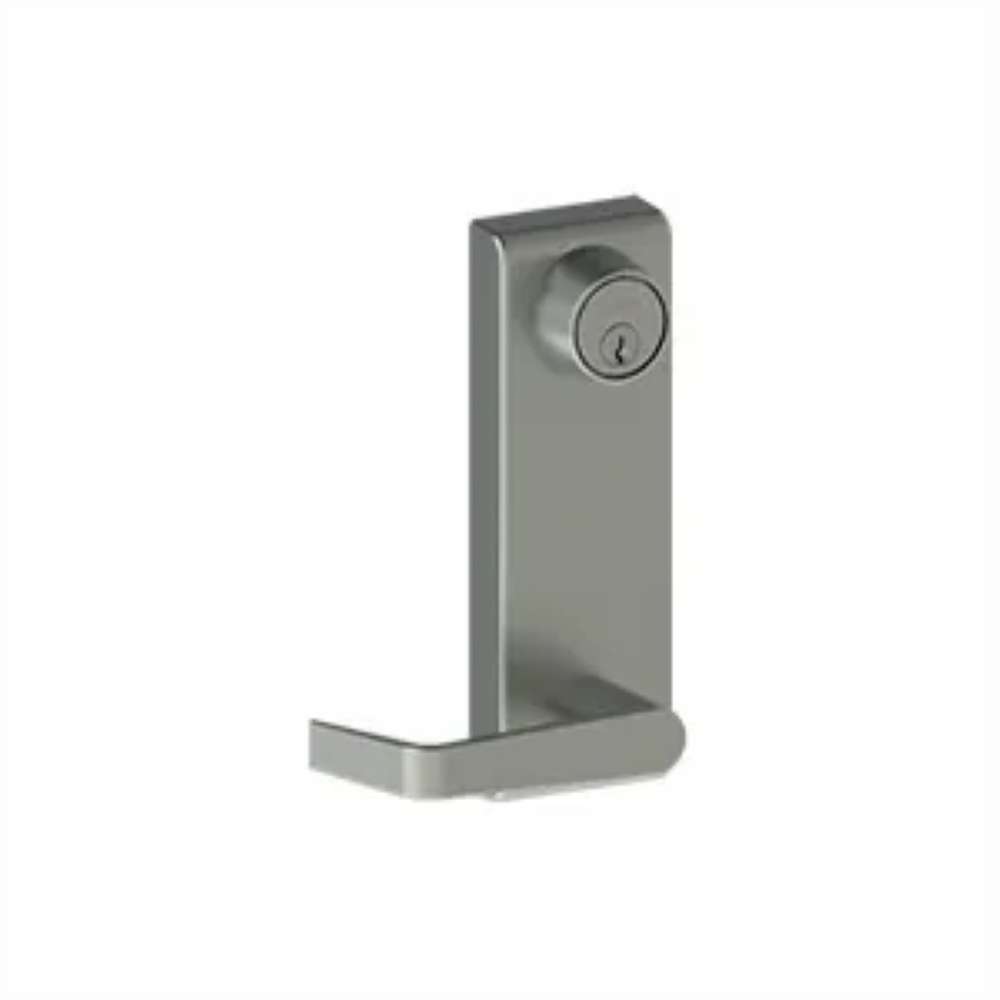

Hager 47CE-08-ALUM-ARC-LHR Std Cyl Escutch 8in Alum Archer
CE - Cylinder Escutcheon Function 08, key locks/unlocks
BE - Blank Escutcheon Function 14, always operable
NL - Night Latch Function 03, key retracts latchbolt
DT - Dummy Trim Function 02, pull when dogged down
KD - Key in Lever - Dummy Trim Function 02, entrance by trim when actuating bar is locked down
KE - Key In Lever - Entrance Function 08, entrance by trim (key locks or unlocks trim)
KN - Key In Lever - Night Latch Function 03, entrance by trim when latch bolt is released by key; removable when locked
KP - Key in Lever - Passage Function 14, entrance by trim when latch bolt is released by lever; always active; no cylinder
PD- Pull Plate Dummy Trim Function 02, pull when dogged down
PN- Pull Plate Night Latch Function 03, key retracts latchbolt
RD- Raised Lip Pull - Dummy Trim Function 02, pull when dogged down
RN- Raised Lip Pull - Night Latch Function 03, key retracts latches
BT - Thumbpiece Pull Plate, Passage Function 15, entrance by trim when latch is released by thumbpiece. Thumbpiece is always active, no cylinder
PT- Thumbpiece Pull Plate, Entrance Function 05, entrance by thumbpiece. Key locks or unlocks thumb piece
Certifications
- Meets ANSI/BHMA A156.3-2014 Grade 1
- Complies with ANSI A117.1 for accessible buildings and facilities (levers only)
Cylinders/Cores
- Requires a 1-1/4" or 1-3/8" long 3902 mortise cylinder with standard cam, sold separately
Escutcheons
2-7/8" x 8" (67 mm x 203 mm)
Finishes US3, ALM, DBZ, US32D
Lever Options Archer, August, Withnell
Projection
- 2-7/8" (73 mm) for Archer
- 2-7/8" (73 mm) for August
- 2-3/4" (70 mm) for Withnell
