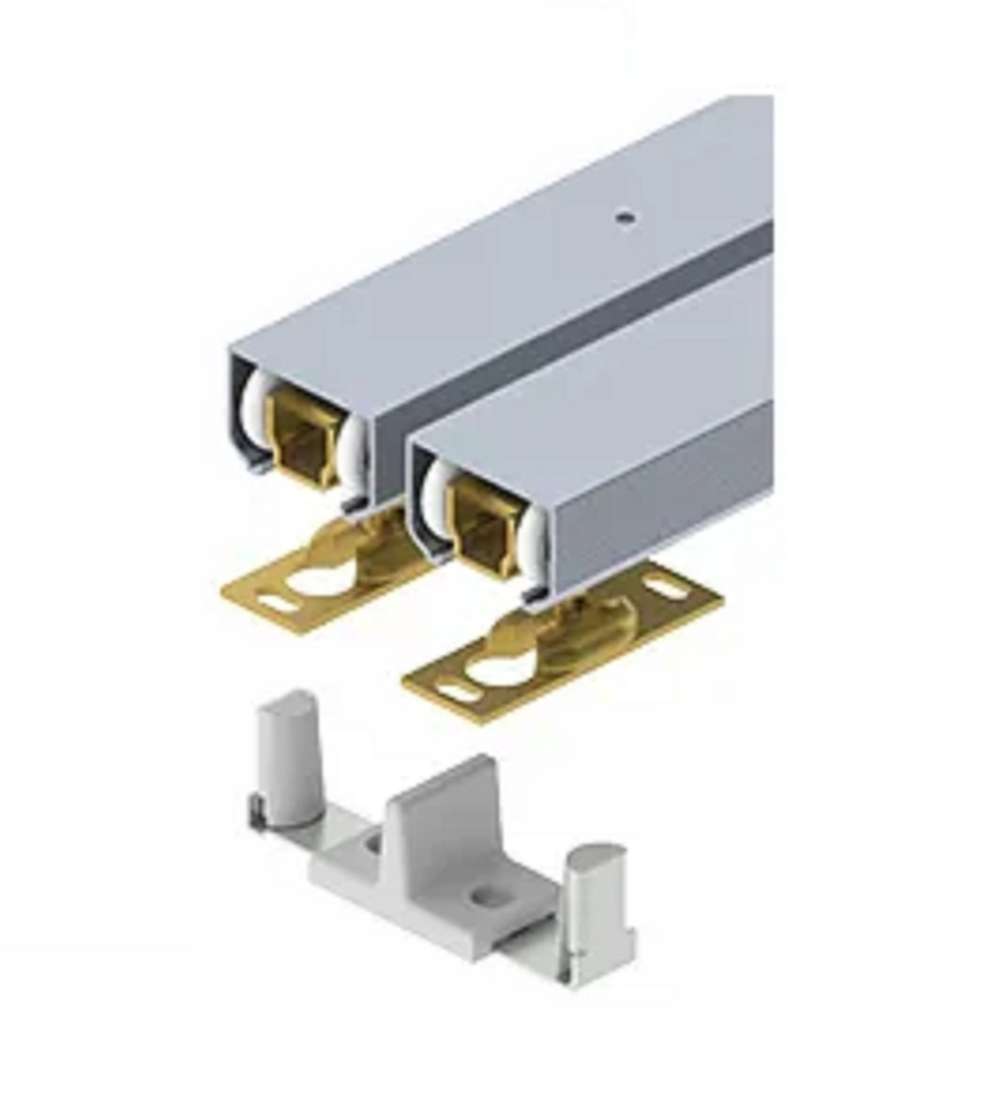

Hager 9611-HD-72 Bypass Track Door Hvy Duty 72in Mill Alum
Applications: Commercial • Healthcare • Hospitality • Office
Certifications
- Meets performance requirements ANSI/
- BHMA A156.14 (Grade 1) for sliding doors
- by exceeding 100,000 cycles
- Type D02411-250
Includes
- (2) Aluminum tracks
- (4) 4-wheel hangers
- (1) Floor channel door guide
- (2) Flush cup pulls
- Parts bag
Length Options: 48”, 60”, 72” & 96”
Maximum Door Thickness: Door thickness from 1-3/8" or 1-3/4"
Maximum Door Weight: 250 lbs. per door
Notes
- The 9611HD is the equivalent of previous By-Pass sets 9130, 9612, 9875
- The 9611CS is the equivalent of previous By-Pass sets 9675, 9676, 9611, 9110
- IMPORTANT: The components between new and previous versions are NON-INTERCHANGEABLE
