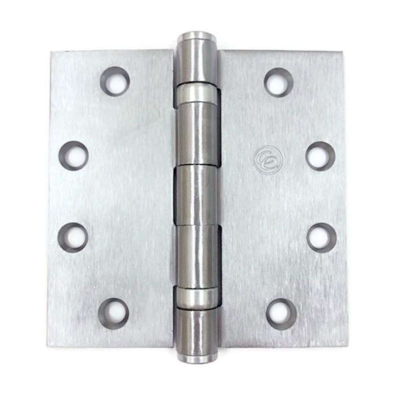

Hager ECBBB11014.5X4.532DNRP Full Hinge Steell 4.5x4.5 Pin
Full Mortise, 5-Knuckle, Ball Bearing, Standard Weight
Applications
For use on medium weight doors or doors requiring medium frequency service.
Certifications
- Meets ANSI A2112 (Brass)
- Meets ANSI A5112 (Stainless Steel)
Fasteners All machine and half wood (AMS x 1/2 WS)
Features Two ball bearings. Non-rising removable pin with button tip and plug.
Finishes US10B, US15, US26, US26D, US32D (316SS)
Knuckles 5
Material Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin
Size Only available in 4-1/2" x 4-1/2" (114mm x 114mm) .134" (3.4mm) leaf thickness.
