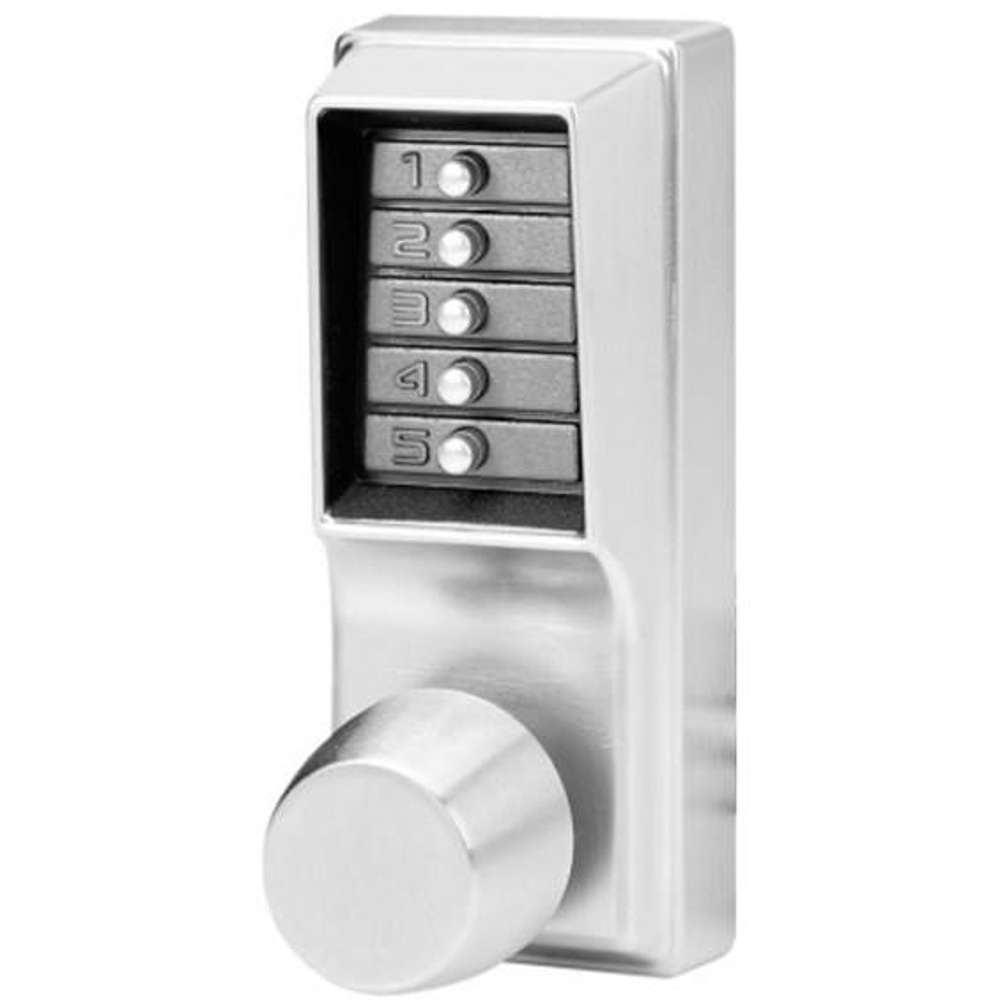

Kaba Simplex Push Button Knob Lock, No Key Override

SKU # SI/1011-26D

The Simplex 1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with knob option, elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.

US$392.40

Specifications:

Specifications:

  • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Handing: Field reversible

Mechanical Features

  • Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Standard Finish: Satin Chrome 26D (626)
  • Backset: 2¾" (70 mm), 2⅜" (60 mm)
  • Latch: ½" (13 mm) throw latch
  • Strike: Standard strike plate; ASA strike plate

Installation

  • Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
  • Items Supplied Include: Lock assembly, installation manual, full-scale template, combination change plug and access key, and required installation hardware

Certification and Testing

  • Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
