Kaba Access Combination Lever Panic Exit Trim

SKU # SILP1000

The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not supplied). This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

- Select Handing: Right Hand or Left Hand

- Select Cylinder: Combination Only, Or Accepts Core (See Dropdown)

Pricing varies based on options selected below.
US$572.40

Description:

Description:

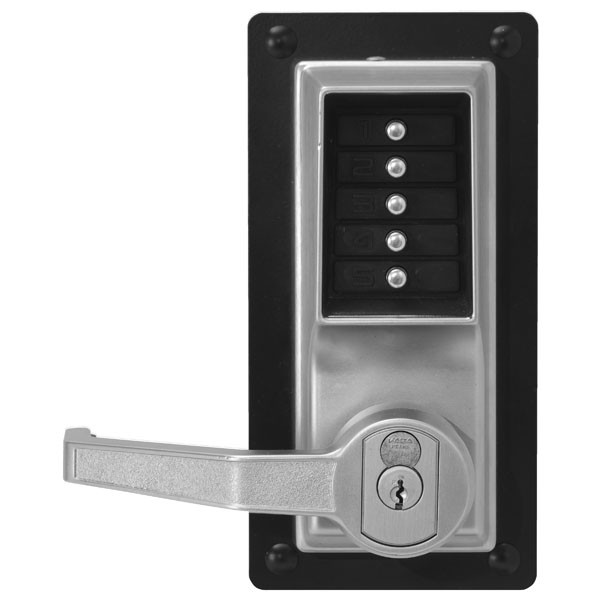

LP1010 - Pushbutton Exit Trim Lock with Lever by Simplex / Unican

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not supplied). This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress with Exit Device (not supplied).
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
Rim Exit Device: Compatible with most leading brands of Exit Devices - see list below (Exit Device and mounting hardware not included).
Number of Codes: Single access code - one easy-to-manage code for all users.
Programming: Lock is easily programmed via keypad without removing lock from the door.
Handing: Factory-handed; not field reversible.
Economical: A cost effective access control solution.

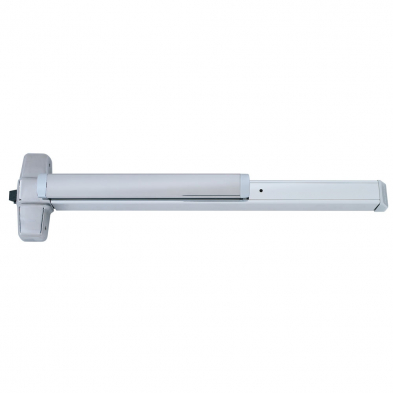

Exit Device Compatibility:
---------------------------------------------------------------------------------------
Black & Decker (K-12) QED111/112          Detex 10/F10 Series
---------------------------------------------------------------------------------------
Cal Royal 5000/F5000                              Dorma 9100, 93000
---------------------------------------------------------------------------------------
Dorex 9500PR/9500FR                              Dorex 8500R/8500F
---------------------------------------------------------------------------------------
Von Duprin Exit Only (EO) or Exit Only Fire (EOF) Devices: 22, 88NL, 98, 99, 9857, 9957

* Cannot be used with mortise design or vertical rod Exit Devices.

Door Thickness: 1-3/8" to 2-1/4".
Backset: 2-3/4" backset. Finish: Satin Chrome 26D (626).
Minimum Stile Requirement: 5".

Special Order Information: For pricing on any function, keyway or finish of the Simplex LP1000 Series not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.

Specifications:

Specifications:

  • Exit Device: Not supplied (see list for compatibility on prior page)
  • Exit Device Strike: Supplied with Exit Device
  • Exit Device Hub Rotation: Up to 60°, counterclockwise for left hand and clockwise for right hand
  • Tailpiece: 2¾" (70 mm) tailpiece for Exit Device operation from outside
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 8 lbs. (3.6 kg)

Key Override

  • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
  • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length),
  • Corbin Russwin (6-pin length), Schlage, and Sargent; core not included

Installation

  • Door Preparation: Recessed through bolts may be required for Exit Device preparation
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)
  • Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
  • Items Supplied Include: Installation manual, full-scale template, combination change tool, and required
  • lock installation hardware only

Certification and Testing

  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
  • Durability: Weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
