Schlage PC10-622-RHO Cyl Performance Passage Blk Rhodes

SKU # SC/PC10-622-RHO

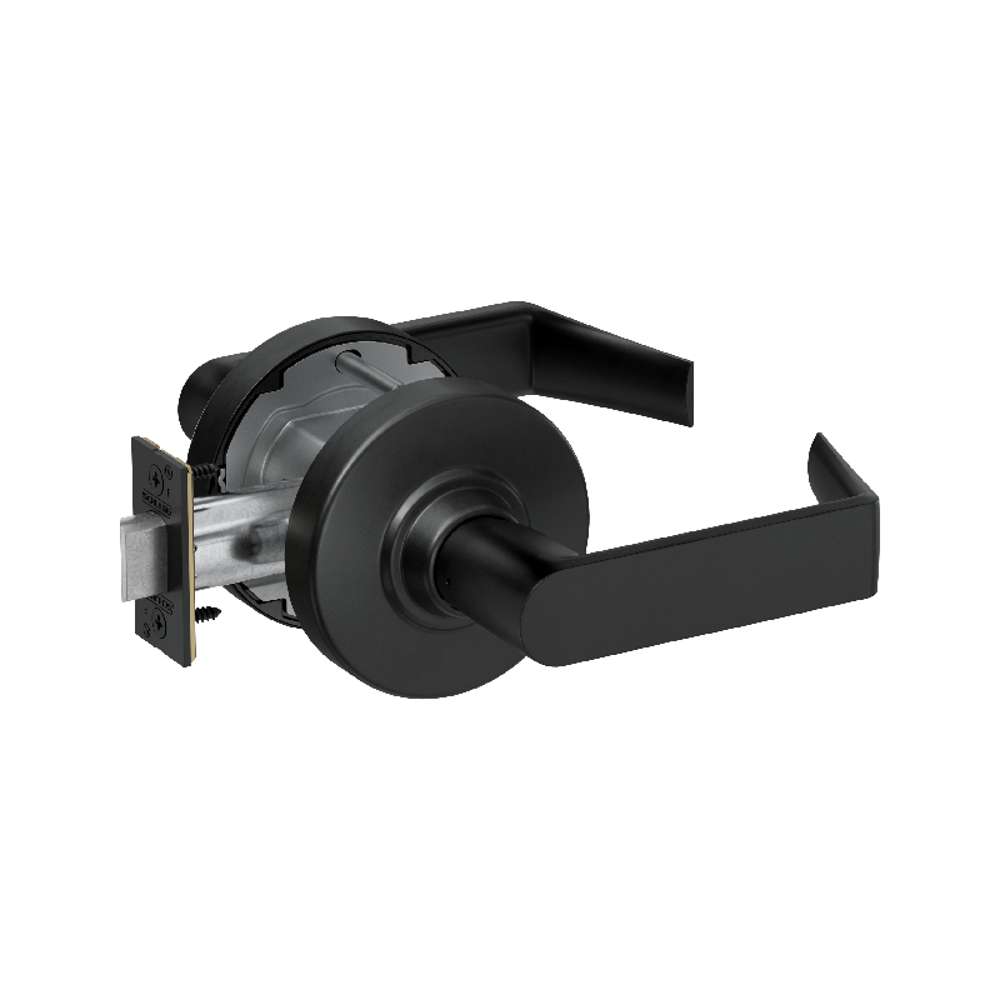

Schlage PC10-622-RHO Cylindrical Performance Series Passage Matte Black Rhodes Lever Lock

  • Backset: 2-3/4" (70 mm) standard; 2-3/8", 3-3/4", and 5" optional
  • Latchbolt: 1/2" (13 mm) throw stainless steel springlatch or dead atch standard; 3/4" throw, 2-3/4" backset anti-friction deadlatch for pair doors optional
  • Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard with screws; Multiple additional square and radius corner options available (see pricebook for details)
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; T-strike with box and T-strike with deep box for fire door latch optional
  • Strike lip length: 1-3⁄16" (30 mm) standard
US$268.20

Description:

Description:

Schlage PC10-622-RHO Cylindrical Performance Series Passage Matte Black Rhodes Lever Lock

Security
Certified to ANSI/BHMA Grade 1 operational and security standards
UL listed for 3-hour fire door
Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
Lock monitoring options; Mechanical Request to Exit (RX) kits sold seperately
Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Compatible with over 7 different non-Schlage key systems

Aesthetics
Eight lever styles constructed of solid zinc offer a strong-yet-comfortable feel
Snap on wrought brass rose eliminates exposed screws
Suites with PM Series, PT Series, and ALX Series Grade 2 cylindrical locks and more
All levers suite with Von Duprin exit devices
Six available finishes across all levers and trims; Satin Chrome, Satin Nickel, Bright Chrome, Matte Black, Aged bronze, Oil Rubbed Bronze

Functions
Eight mechanical functions include 4 keyed, 2 non-keyed, 2 dummy
Keyed; Entrance, Entrance/Office, Storeroom, Classroom Lock Exterior Lockdown,
Non-keyed; Passage latch, Bed/Bath Privacy
Dummy: Single and Double Dummy

Built to Perform
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
5-year mechanical warranty
