Schlage PC10-626-RHO Cyl Performance Passage Chrm Rhodes

SKU # SC/PC10-626-RHO

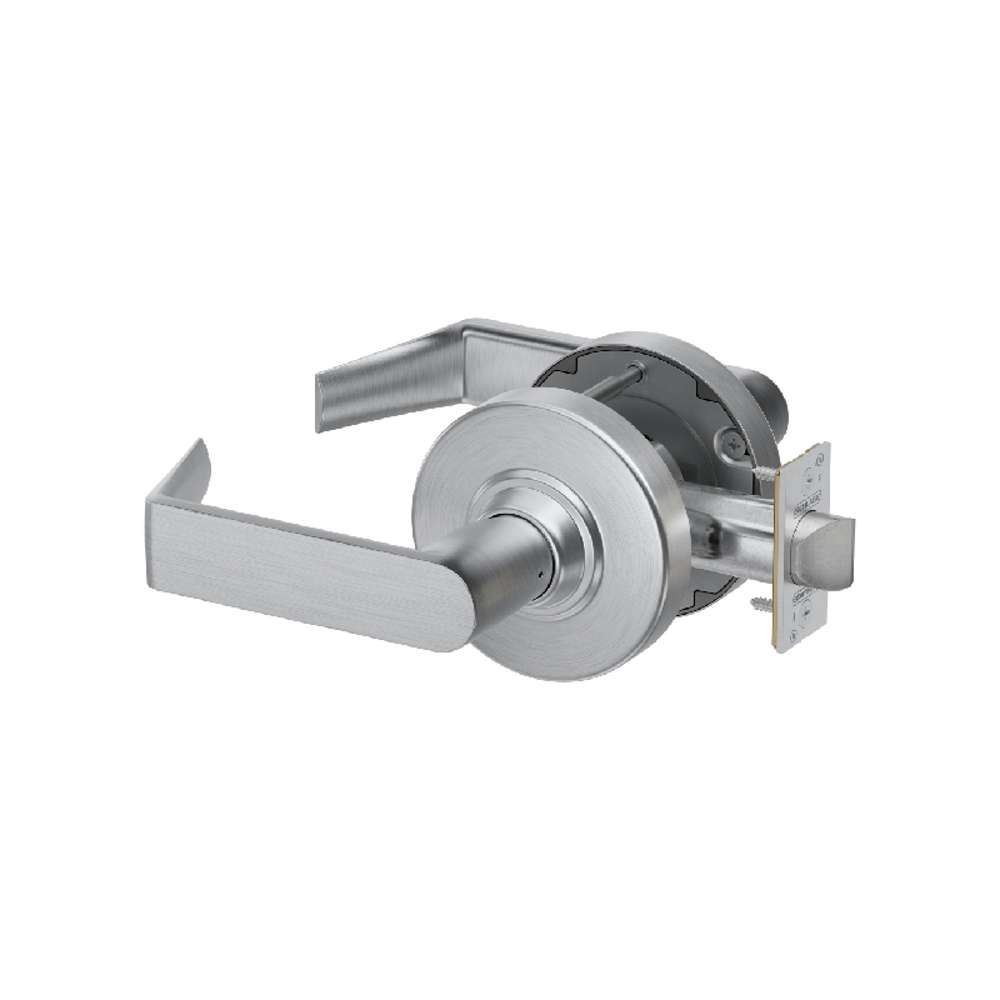

Schlage PC10-626-RHO Cylindrical Performance Series Passage Satin Chrome Rhodes Lever Lock

  • Backset: 2-3/4" (70 mm) standard; 2-3/8", 3-3/4", and 5" optional
  • Latchbolt: 1/2" (13 mm) throw stainless steel springlatch or dead atch standard; 3/4" throw, 2-3/4" backset anti-friction deadlatch for pair doors optional
  • Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard with screws; Multiple additional square and radius corner options available (see pricebook for details)
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; T-strike with box and T-strike with deep box for fire door latch optional
  • Strike lip length: 1-3⁄16" (30 mm) standard
US$268.20

Description:

Description:

Schlage PC10-626-RHO Cylindrical Performance Series Passage Satin Chrome Rhodes Lever Lock

  • ANSI/BHMA Grade 1 certified
  • 1" stainless steel latchbolt
  • 8 mechanical functions
  • 12 cylinder options
  • UL listed for 3-hour fire door
  • Common door prep for ease of retrofit
  • Fast install with pre-assembled components and retained screws
  • Optional request to exit (RX) kits available on 3 functions

Purpose-built to serve the commercial real estate, retail, multifamily, and hospitality industries, Schlage Performance Series locks feature exceptional quality and style at a highly competitive price point. The PC Series cylindrical locks offer eight mechanical functions, made to meet Schlage’s rigorous quality standards. They bring together aesthetic options appropriate for the design-forward occupant touch points of these industries and the full range of Schlage key system security. You can use PC Series locks as part of a common aesthetic. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. With the PC Series, you can speedily install the lock with the common cylindrical ANSI 161 door prep, pre-assembled install-assist design, and a no-adjustment chassis that fits the full door range.

Specifications:

Literature:

Product Videos:

Product Videos:
