Schlage PM010-626-RHO-N Mort Perform Pass Rho N Escutch Chrm

SKU # SC/PM010-626-RHO-N

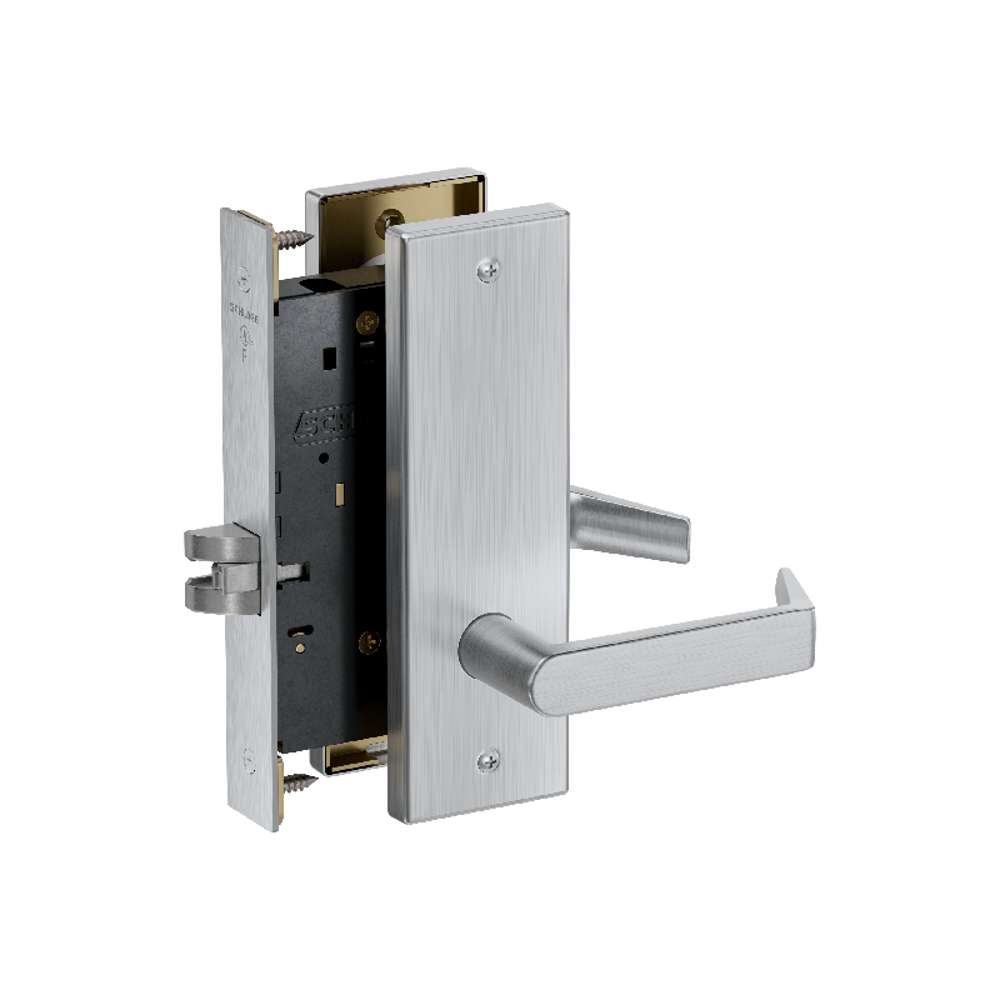

Schlage PM010-626-RHO-N Mortise Performance Series Passage Lock Rhodes Lever N Escutcheon Satin Chrome

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
  • Deadbolt: 1" (25 mm) throw stainless steel
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
  • Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"
US$369.60

Description:

Description:

Schlage PM010-626-RHO-N Mortise Performance Series Passage Lock Rhodes Lever N Escutcheon Satin Chrome

  • ANSI/BHMA Grade 1 certified
  • 1" stainless-steel throw deadbolt
  • Anti-saw pin in bolt to prevent cut-through
  • 23 mechanical and 3 electrified functions
  • 16 sectional indication functions
  • 12 cylinder options
  • Optional request to exit (RX) and latchbolt (LX) monitoring
  • UL listed for 3-hour fire door
  • In-field reversible handing

Purpose-built to serve the commercial real estate, retail, multifamily and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a competitive price point. The PM Series offers 26 functions, including three electrified, and four mortise deadbolt functions, all made to meet Schlage’s rigorous quality standards. With popular levers and finish options, Schlage's full key system security line up, and its durable design, you can meet needs for both security and style. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. Better yet, you can suite the PM Series mortise locks with the PT Series tubular locks, as they share lever and rose styles.
