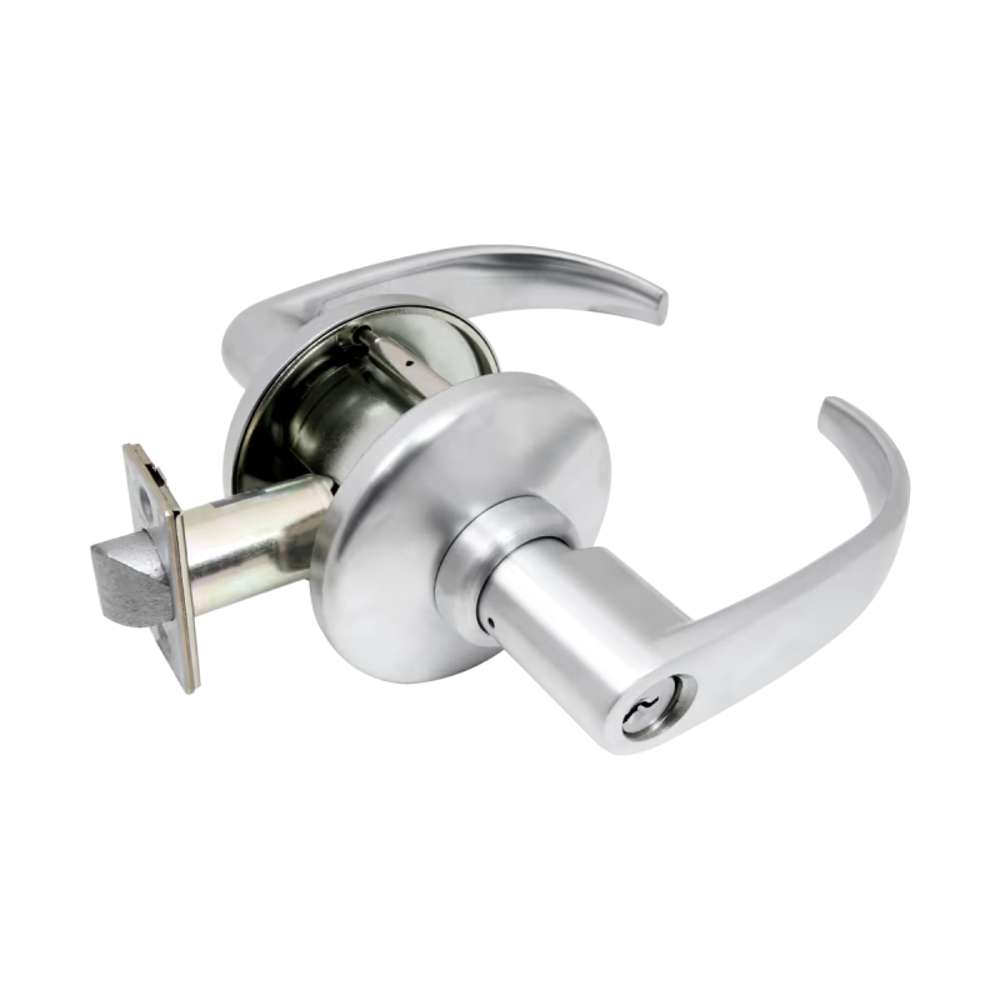

Town Steel CE-R-109-S-619 F109 Entry/Office Non-Keyed Single Cylinder 6-Pin Sentinel Satin Nickel
The CE-R is a heavy-duty ANSI Grade 1 cylindrical lock engineered for busy commercial facilities and purpose-built for retrofit upgrades. It allows facilities to upgrade aging hardware without the cost and disruption of full-door replacements, giving schools, offices, and industrial spaces a smoother path to improved security. It features an enhanced internal spring mechanism that reduces lever sag and a low-projection rose that maintains a modern, polished look.
Backset
2-3/4", standard
2-3/8", optional
5", optional
Door Thickness
1-3/4"
Door Prep
2-1/8" bore hole with adjustable through-bolt posts for 2-5/8" or 2-3/4" CTC
Handing
Non-handed
Lockbodies
CE-R - Rigid (Outside lever rigid when locked)
CEC-R - Clutched (Outside lever free wheeling when locked)
Faceplate
1-1/8" x 2-1/4", square corners
Strike
ASA Strike, 1-1/4" x 4-7/8", standard
T-Strike, 1-1/8" x 2-3/4", optional
Latch Bolt
1/2" throw, stainless steel
Rose
9/16" projection, 3-9/32" diameter
Inside Collar/Bearing
7/16” projection, 1-15/32” diameter
Outside Collar/Bearing
13/32” projection, 1-15/32” diameter
