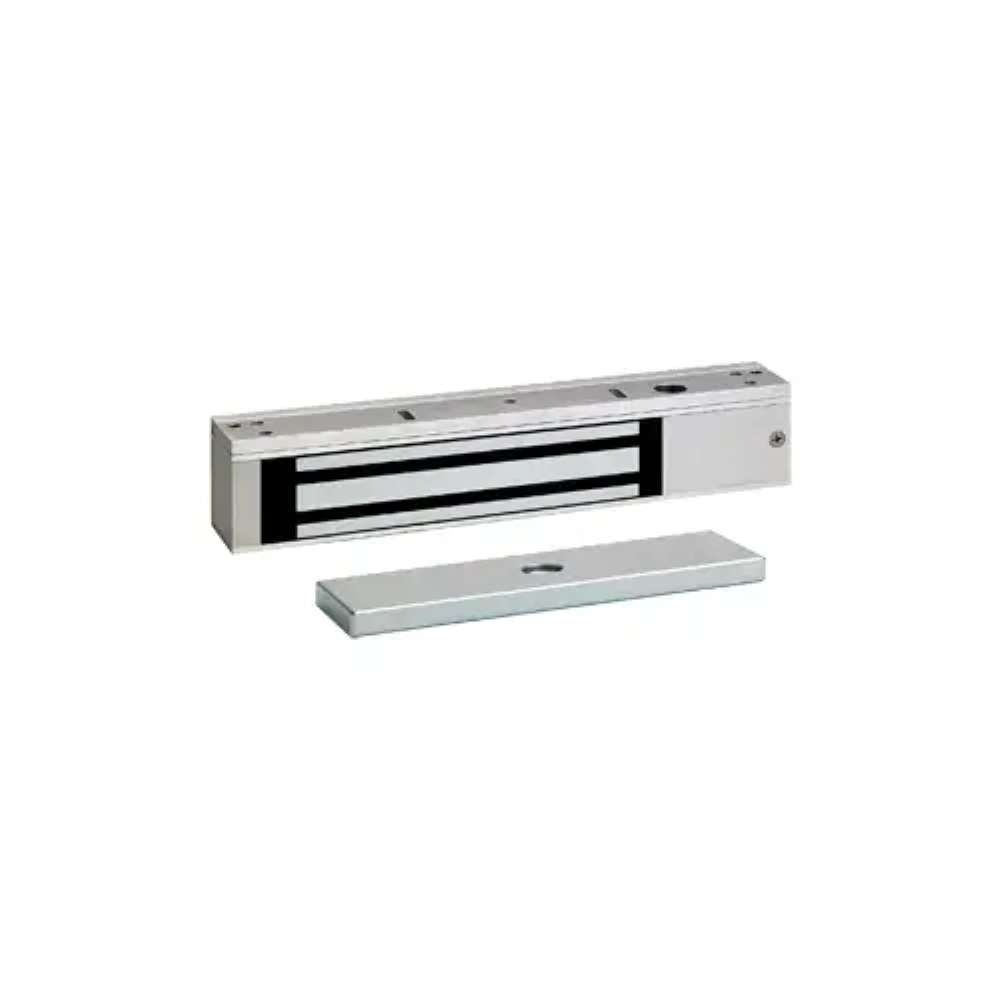

Hager 2941-ALM Single Magnetic Lock 600lbs Holding Aluminum
2941 Magnetic Lock
Use: For interior door traffic control where physical attack is not a concern
Designed for system integrators, distributors, installers, and building owners presently using low cost import or private label brand access control hardware
- ANSI/BHMA A156.23 GRADE 1 Compliant
- Easy to install
- Provides superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks
- Full monitoring standard
- Quick mount assembly reduces installation time
- Includes: Door and lock status outputs for remote monitoring and system application needs
- Holding Force: 600 lbs (272 kg)
Lock:
- 9-7/8" (l) x 2" (h) x 1" (d)
- 250 (l) x 73(h) x 41 (d) mm
Armature:
- 7-5/16" (l) x 1-1/2" (h) x 1/2" (d)
- 186 (l) x 38 (h) x 13 (d) mm
Voltage:
- 12/24 VDC, field selectable
- 500 mA @ 12 VDC; 250 mA @ 24 VDC
Circutry/Wiring: PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input and status outputs
Lock Status: SPDT, 2 mA @ 30 VDC
Door Status: SPDT, 500 mA @ 30 VDC
Finish: Clear anodized aluminum
Accessories:
- 2-679-0101 - Top Jamb Kit
- 2-679-0103 - Glass Armature Mounting Kit
- 2-679-0105 - Adjustable Angle Bracket
- 2-679-0106 - Angle Bracket (cut to fit 2941)
- 2-679-0107 - Stop Filler Plate (field cut for 2941)
- 2-679-0108 - Stop Filler Plate (field cut for 2941)
