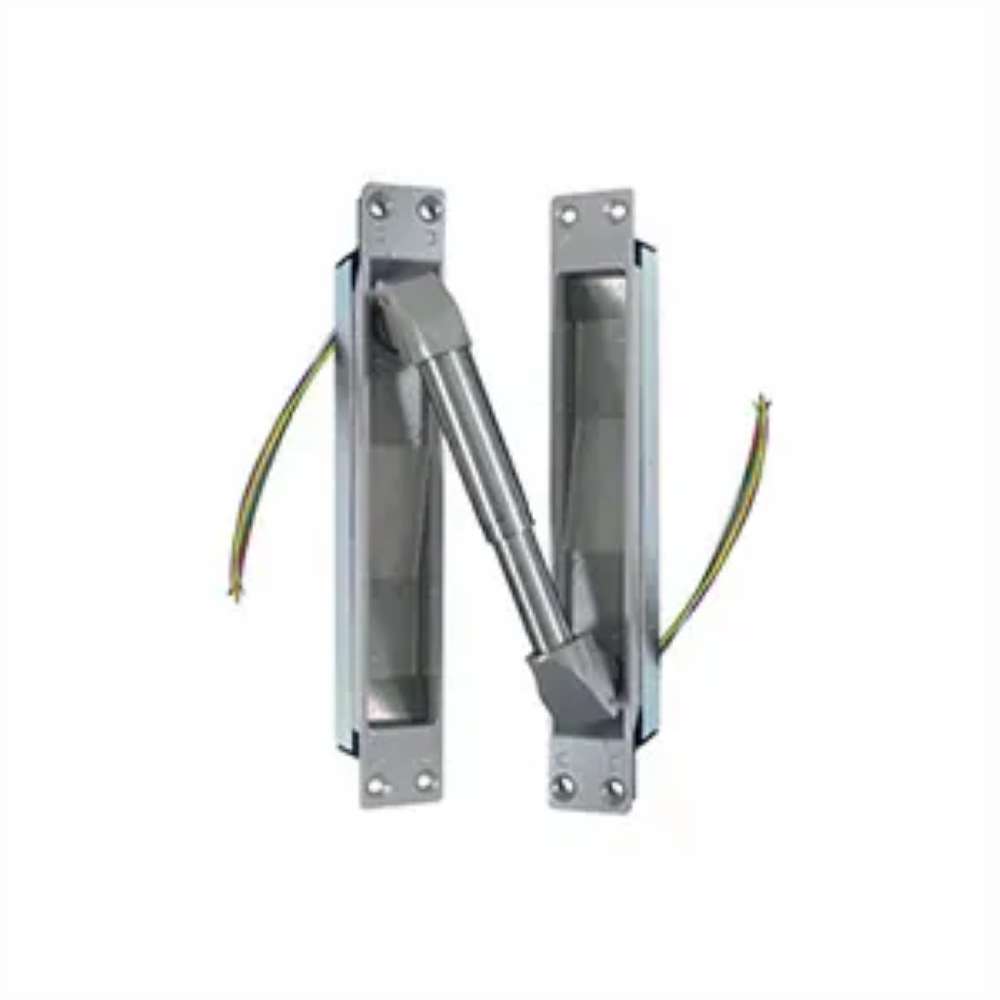

Hager 2-679-0623 Heavy Duty Power Transfer 10-wire concealed
Applications
- Provides a concealed and secure means of transferring electric lock and exit device power and signal wires from the frame to the door
- Ideal for high traffic openings
Certifications
- UL 10C Listed for up to 3 hours on fire rated doors and frames
- UL Listed Miscellaneous Fire Door Accessories
- Classified according to Uniform Building Code (UBC) Standard 7-2, Fire Test of Door Assemblies (1997)
Compatible Openings
- 1-3/4" (44 mm) thick doors
- 0-180 degree opening swing with up to 3/4" (19 mm) offset pivots
- 0-180 degree opening swing with up to 5" wide butt hinges
- 0-130 degree opening swing with up to 5-1/2" (140 mm) wide butt hinges
Electrical Specifications
(10) 24AWG WIRES-MAX RATING 24VDC, 1A
Features
All metal design with stainless steel tubular wire transfer and heavy cast housing with steel back boxes provide weather and tamper resistance when the door is open or closed
The removable transfer allows the door to be serviced easily without removing the door from the opening.
Mortise door and frame installation
Finishes
- 2-679-0623 - ALM
- 2-679-0624 - DBZ
Fire Rating
UL 10C Listed for up to 3 hours on fire rated doors and frames, UL Listed Miscellaneous Fire Door Accessories
Maximum Door Thickness
1-3/4"
Product Description
Heavy Duty Power Transfer 10-Wire
Product Number
2-679-0623
Size
- 9" Height
- 1-1/4" Width
- 1-5/8" Depth
