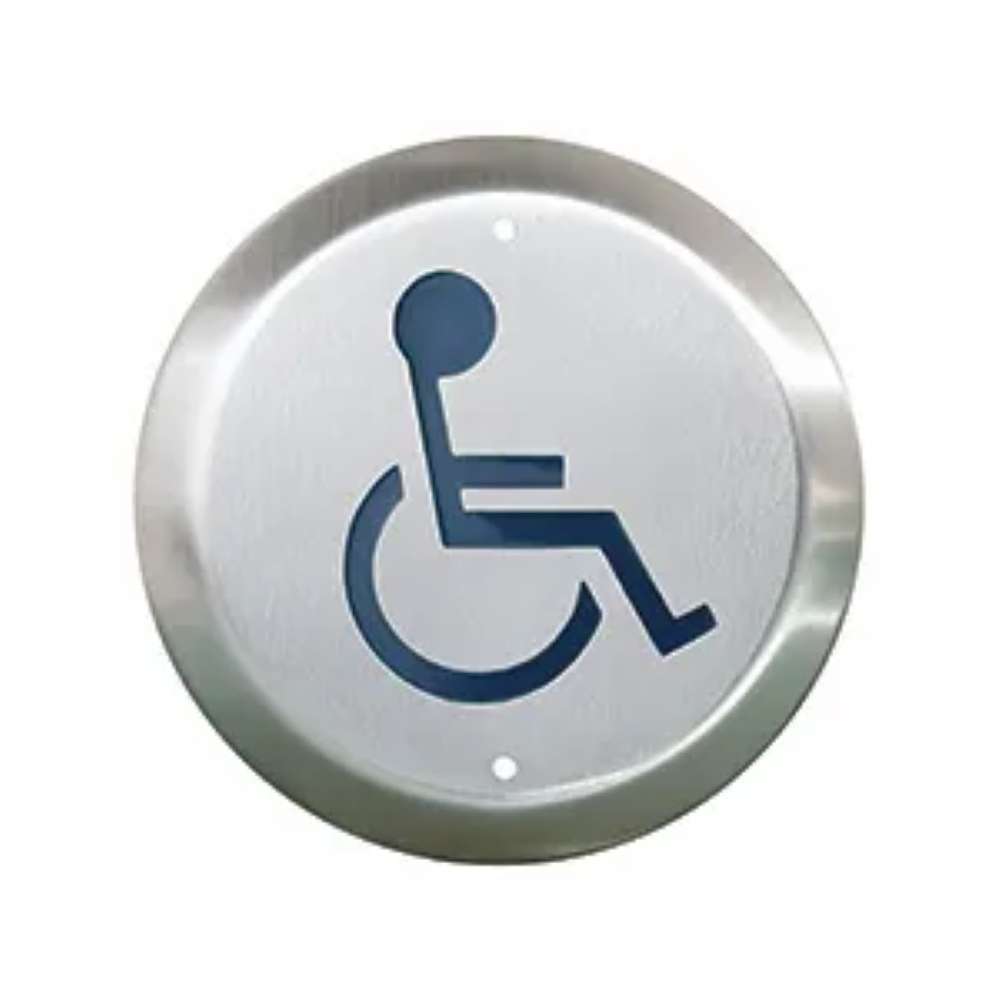

Hager 8228-00H-00-6-RND Nrrw Kntc Oprtr 6 Rnd Whlchr Txt Stl
Accessories
Wireless Transmitter - 82TX - up to 500' range in open area
Wireless Receiver - 82RX - receives up commands from up to 40 82TX transmitters
Applications
- Interior and exterior
- For use with ADA Low Energy Power Operators
- Ideal installations include medical facilities, assisted living facilities, offices, clean rooms, schools, and buildings with public access
Features
- Stainless steel faceplate provides durability while also reducing visible deterioration caused by abrasive cleaning agents
- Wired with optional wireless functionality
- Embossed graphics for durability
- Beveled edges
Material
Mounting Style
- Surface (black) - 8225-02P | #100205148 | 8225-02P 4.5" SQR PLSTC BLK
- 82TX Surface Spacer - 8225-02PSP | #100207283 | 8225-02PSP 4.5" SQR PLSTC SPCR BLK
- 42" Bollard (aluminum) - 8226-06M | #100205140 | 8226-06M 42" TL MTL CLR
- 42" Bollard (dark bronze) - 8226-06M | #100205141 | 8226-06M 42" TL MTL DBA
- Single Gang Electrical Box - compatible
- Double Gang Electrical Box - compatible
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Size
- Height: 4-1/2" (114mm)
- Width: 4-1/2" (114mm)
- Depth: 1-1/4" (32mm)
Switch Operation
- Switch Type: Momentary
- DPDT Switch: Optional
Voltage: 12/24 V AC/DC
