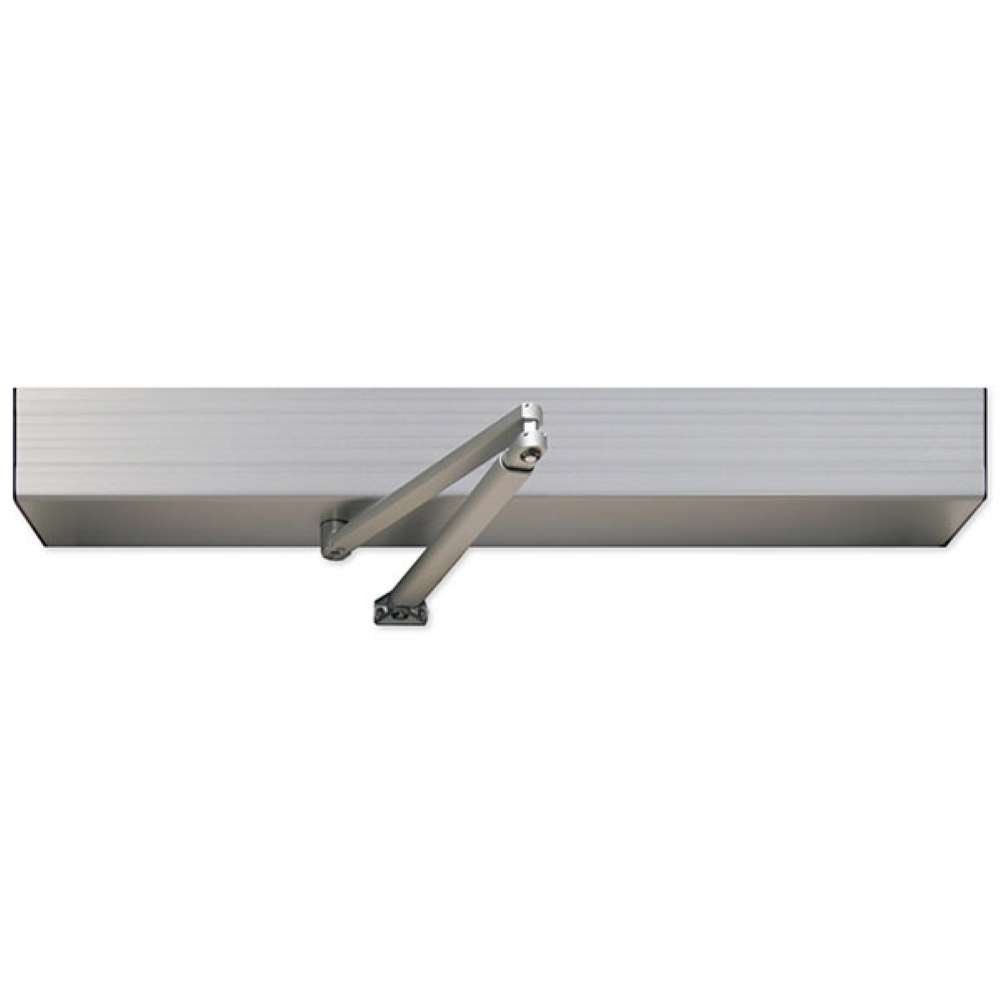

Hager 8318-36-PS-DBZ 8318 Operator Single 1 unit Push arms 35mm spindle 36in Bronze
Fire Rating: UL/cUL (Fire rating) Listed for up to 3 hours
Includes: Appropriate door signage included with each operator
Installation Single person installation using pre-drilled mounting holes
Maximum Door Weight 350 lbs.
Maximum Door Width 5'
Notes
- For stocking distributors, operators and arms can be ordered separately allowing for reduced inventory and greater flexibility. See the price book for additional information.
- Order form required for all Hager low energy operators. Order form can be found under Related Files. Please complete and submit with purchase order.
- For High usage openings or abusive environments, Hager recommend using a 7000 Series Overhead Stop.
Operating Temperature -4°F to + 131°F
Product Description
Low Energy Auto Operator for Single Door Openings
Product Number 8318
Programmable Functionality
- Boost on close - selectable power assist and additional force for the last 10 degrees of closing
- Adjustable Opening Force Limitation
- Adjustable Opening and Closing Speeds
- Adjustable Hold Open Time for Door Activators
Reveal
Push Arm: 9-3/4" (Reveals between 9-3/4" and 19", arm extension must be ordered separately)
Pull Arm: 0"
Size
5" H x 4-1/2" D x Length equals opening width plus 3"
