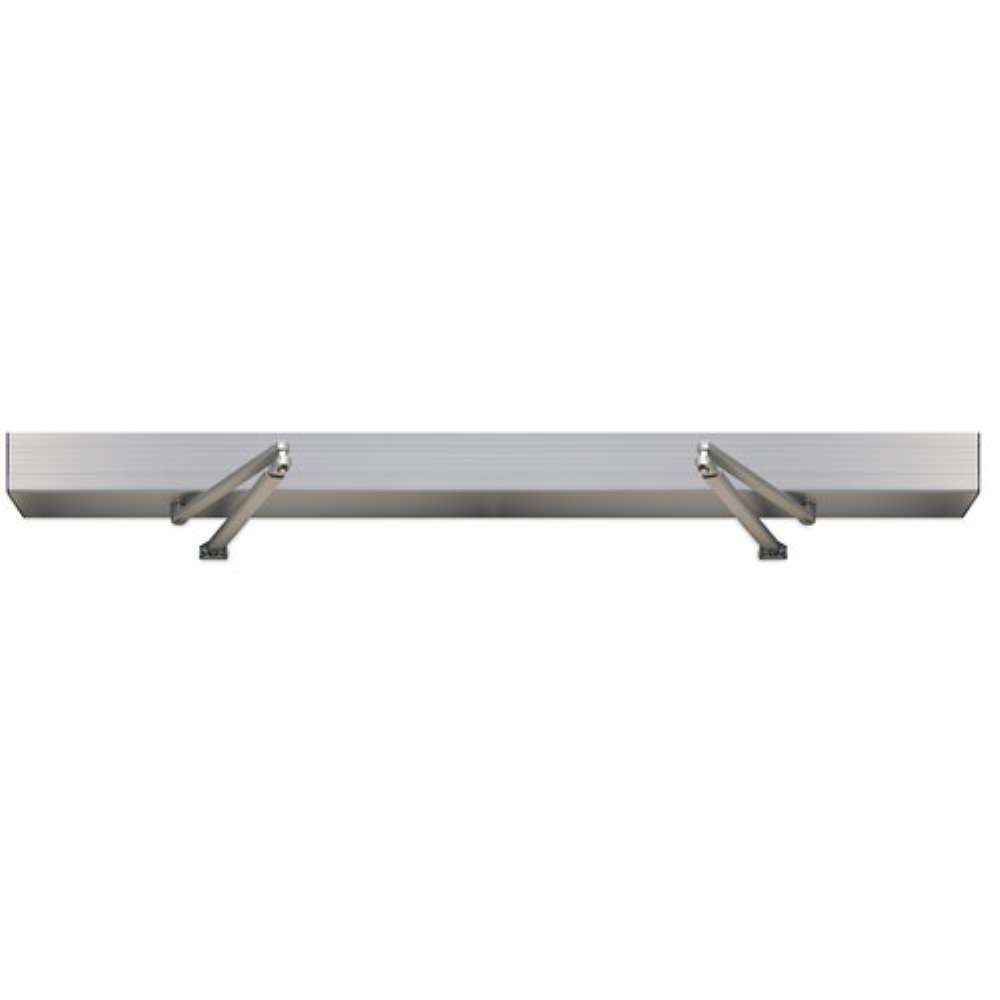

Hager 8319-96-PS-DBZ 8319 Operator Simultaneous Pair 2 units Push arms 35mm spindle 96in Bronze
- Power Requirements: 115 VAC 60 HZ
- Current Draw: 0.4 A to 1.2 A (Max) (Each Motor)
- Onboard Power Supply: 24 VDC 1 A (Each Motor)
- Electric Lock Relay Type: Form "C" SPDT (Each Motor)
- Lock Relay Rating: 5.0A @ 28 VDC (Each Motor)
- Fused Protection: 3.15A fuse (Each Motor)
Adjustable Swing Degree 80° to 140°
Applications
- For use on fire-rated and non-fire-rated openings
- Exterior Doors: Yes (Interior side only)
- Works on both outswing or inswing doors
Adjustable Opening Angle: Max Degree of Swing Powered -180 degrees (push), 140 (pull)
Opening Force: <15 lbs. - Exceeds all ADA requirements
Closing Force: >8 lbs.
- UL/cUL (Fire rating) Listed for up to 3 hours
- Includes Appropriate door signage included with each operator
- Installation Single person installation using pre-drilled mounting holes
Maximum Door Weight 350 lbs.
Maximum Door Width 5'
Notes
For stocking distributors, operators and arms can be ordered separately allowing for reduced inventory and greater flexibility. See the price book for additional information.
Order form required for all Hager low energy operators. Order form can be found under Related Files. Please complete and submit with purchase order.
For High usage openings or abusive environments, Hager recommend using a 7000 Series Overhead Stop.
Operating Temperature -4°F to + 131°F
Product Number 8319
Programmable Functionality
- Boost on close - selectable power assist and additional force for the last 10 degrees of closing
- Adjustable Opening Force Limitation
- Adjustable Opening and Closing Speeds
- Adjustable Hold Open Time for Door Activators
Reveal
- Push Arm: 9-3/4" (Reveals between 9-3/4" and 19", arm extension must be ordered separately)
- Pull Arm: 0"
- Size 5" H x 4-1/2" D x Length equals opening width plus 3"
