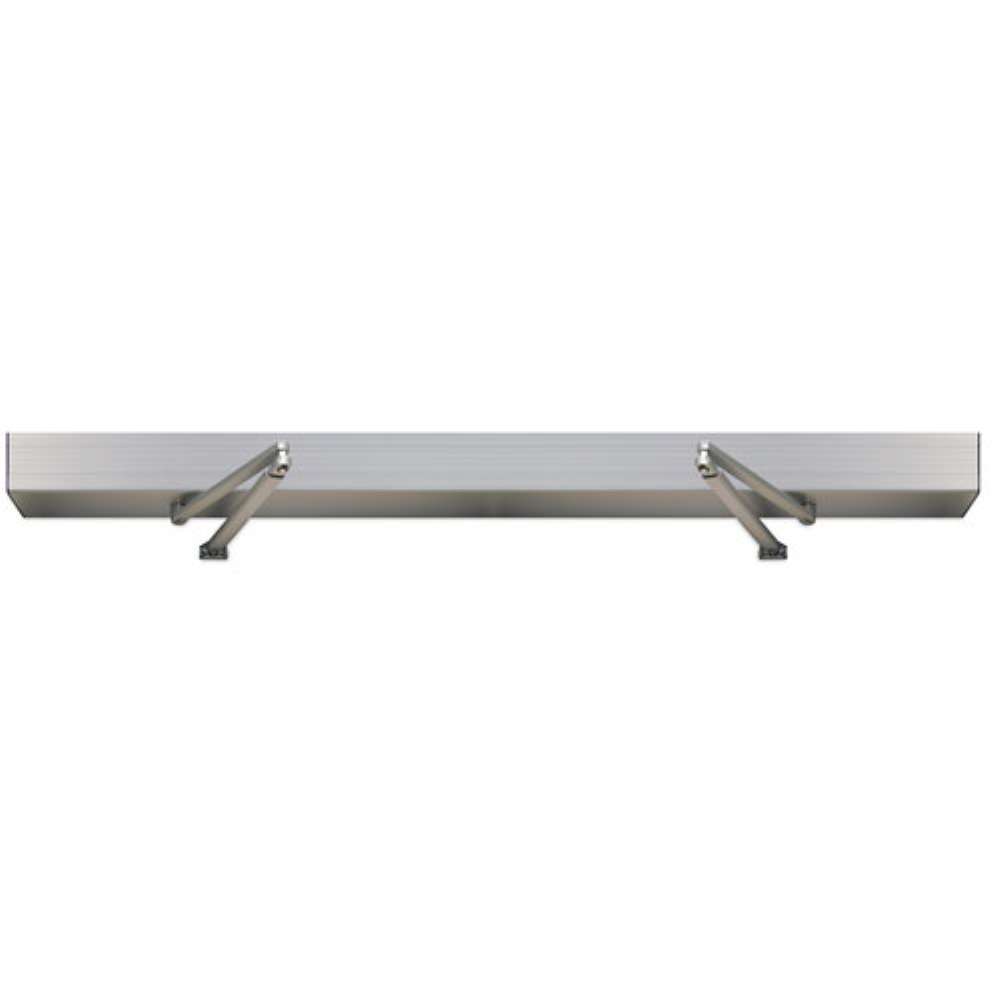

Hager 8321-96-DBZ Operator Push arms 35mm spindle Pull arms 20mm spindle 96in Brnz
Applications
- For use on fire-rated and non-fire-rated openings
- Exterior Doors: Yes (Interior side only)
- Works on both outswing or inswing doors
- Adjustable Opening Angle: Max Degree of Swing Powered -180 degrees (push), 140 (pull)
- Opening Force: <15 lbs. - Exceeds all ADA requirements
- Closing Force: >8 lbs.
Electrical Specifications
- Power Requirements: 115 VAC 60 HZ
- Current Draw: 0.4 A to 1.2 A (Max) (Each Motor)
- Onboard Power Supply: 24 VDC 1 A (Each Motor)
- Electric Lock Relay Type: Form "C" SPDT (Each Motor)
- Lock Relay Rating: 5.0A @ 28 VDC (Each Motor)
- Fused Protection: 3.15A fuse (Each Motor)
Fire Rating UL/cUL (Fire rating) Listed for up to 3 hours
Installation Single person installation using pre-drilled mounting holes
Maximum Door Length 5'
Maximum Door Weight 350 lbs.
Notes
- Order form required for all Hager low energy operators. Order form can be found under Related Files. Please complete and submit with purchase order.
- For High usage openings or abusive environments, Hager recommend using a 7000 Series Overhead Stop.
Operating Temperature -4°F to + 131°F
Product Number 8321
Programmable Functionality
- Boost on close - selectable power assist and additional force for the last 10 degrees of closing
- Adjustable Opening Force Limitation
- Adjustable Opening and Closing Speeds
- Adjustable Hold Open Time for Door Activators
Reveal Double Egress Arm: 4"
Size 5" H x 4-1/2" D x Length equals opening width plus 3"
