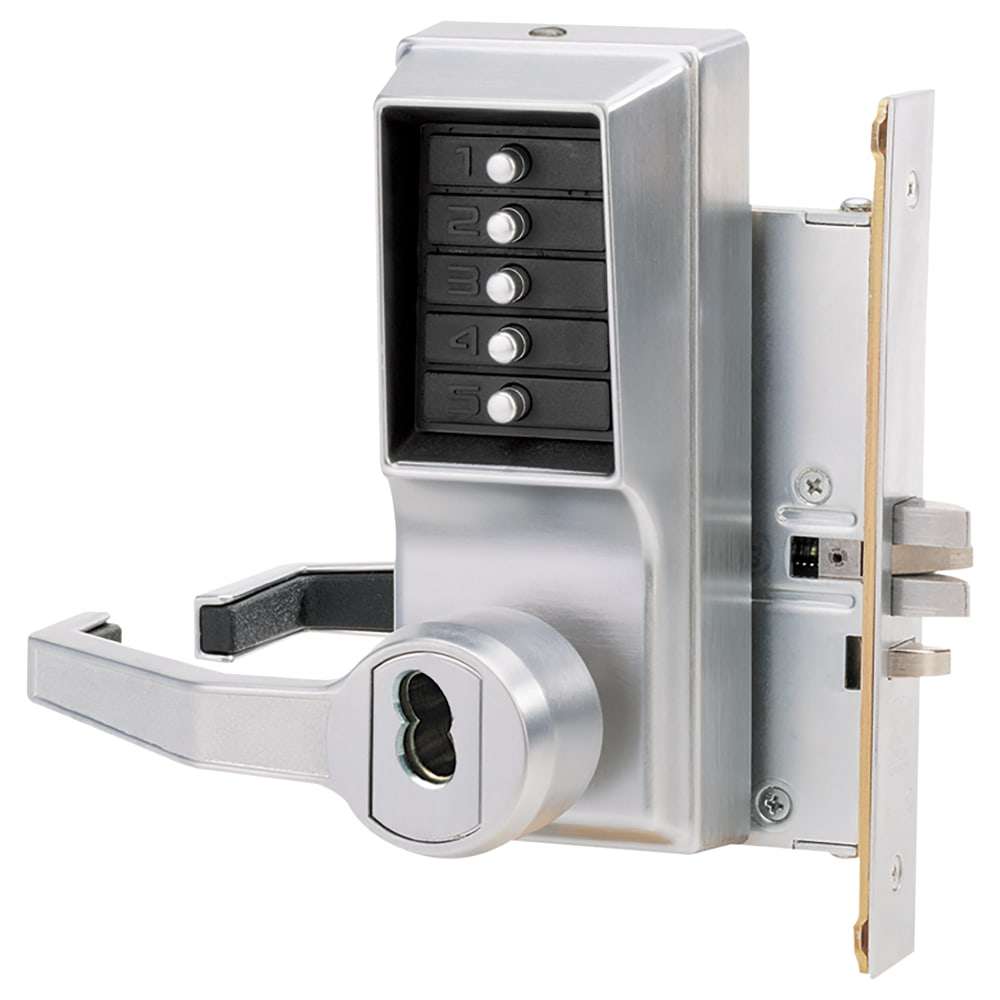

Kaba Access L8146S-26D-41 Mortise Combination Lever Lock

SKU # SI/L8146S-26D

The Kaba Access L8146S-26D-41 Mortise Combination Lever Lock

  • Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Backset: 2¾" (70 mm)
  • Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
  • Minimum Stile Recommended: 5" (127 mm)
  • Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
  • Key Override
    • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
    • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
  • Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
  • Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: Weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$574.56

Description:

Description:

Kaba Access L8146S-26D-41 Mortise Combination Lever Lock

The Simplex L8146S-26D-41 series of Simplex Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. It also provides exterior access by combination, while allowing free egress. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Simplex 8100 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. The Simplex 8100 grants entry upon successful validation of a 1 to 5 digit code that you pre-program into the lock. Being vandal protected hardware, the Simplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional, and government buildings throughout the world.

Features and Benefits:

  • Satin Chrome Finish
  • Core is not included
  • 100% push-button lock
  • Exterior access is by combination, Egress is by interior lever and is free at all times
  • Simple to install, use and maintain
  • Thousands of possible codes combinations
  • ADA compliant lock
  • It includes a mortise lock that can be locked or set to passage mode whereas the interior is always unlocked
  • Combination entry with key override, passage and lockout access function
  • Low maintenance with no batteries or wires eliminates the material and labor expense of battery replacements
  • Covers existing standard ASA 161 door hole
  • Left hand handing operation
  • UL listed hardware
  • Very Economical - a cost effective access control solution
  • Its lock is easily programmed via keypad without removing the lock from the door - Awesome
  • Single access code feature makes 'one easy-to-manage code' for all users
  • Vandal resistant hardware with solid metal pushbuttons
  • Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Schlage key override feature
  • It easily installs on wood or metal doors
  • Minimum stile recommended: 5" (127 mm)
  • Simple On Door Code Change
  • Door Thickness: 1-3/4" (44 mm) to 2-1/4" (57 mm)
  • High Usage
  • Heavy Duty - Ansi 156.3
  • Backset: 2-3/4 inch (70 mm)
  • 3 years manufacturer warranty
