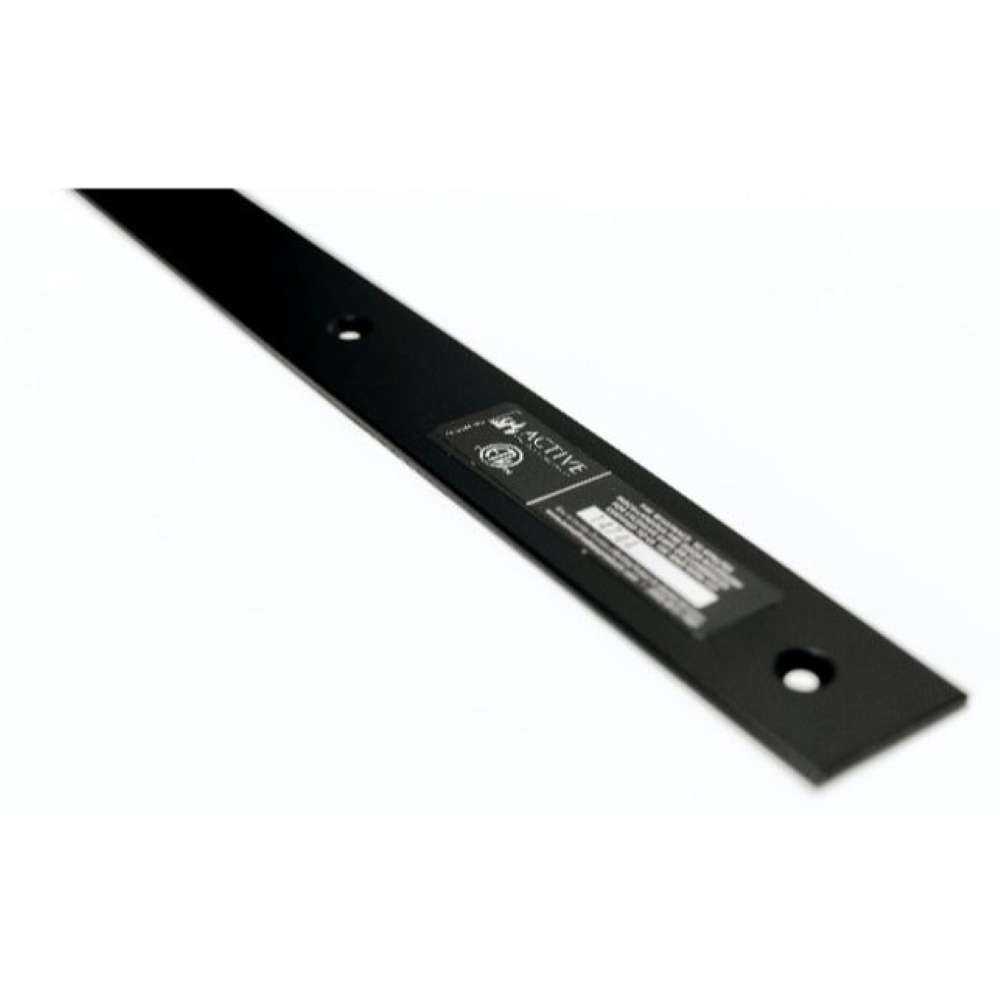

Active Fire Door B3-34 Black 3ft Gap 3/4in Fire Door NFPA

Active Fire Door B3-34 Black 3ft Gap 3/4in Thick Fire Door Gaps NFPA

ACTIVE GAP FILLERS CAN TAKE THE HEAT!
Finally, a simple solution to fire door gaps that provide immediate NFPA compliance!  Active Fire Rated Gap Fillers can be installed on top, strike, hinge, undercut and meeting stile of metal and wood fire rated doors and frames up to 90 minutes.

Active Gap Fillers are installed with steel fasteners within countersunk holes to ensure flush installation, providing proper latching. All Gap Fillers can be painted, cut to size, and additional countersunk holes can be added by customers without interruption of Intertek listing.

Also available in unfinished, primer gray which can be painted or installed as is.

• 1/8″ gap needs Active Gap Filler 1/16″
• 1/4″ gap needs Active Gap Filler 1/8″
• 1/2″ gap needs Active Gap Filler 3/8″
• 3/8″ gap needs Active Gap Filler 1/4″
• 5/8″ gap needs Active Gap Filler 1/2″
• 3/4″ gap needs Active Gap Filler 5/8″

Code Requirements:

2019-NFPA 80
6.3.1.7 Clearances
6.3.1.7.2* The clearances between the top and vertical edges of hollow metal doors and the frame, and the meeting stiles of doors swinging in pairs, shall be 1⁄8in.± 1⁄16in. (3.18 mm ± 1.59 mm).
4.8.4 Clearance.
4.8.4.1 The clearance under the bottom of a door shall be a maximum of ¾”.
4.8.4.4 Where the bottom of the door is more than 38 inches above the finished floor, the maximum clearance shall not exceed 3/8” or as specified by the manufacturer’s label service procedure.
5.2.3.5.2 (6) Door clearances do not exceed clearances listed in 4.8.4 and 6.3.1.7.

2016-NFPA 80
6.3.1.7 – Clearances
6.3.1.7.2 – The clearances between the top and vertical edges of the door and frame, and the meeting edges of doors swinging in pairs, shall be 1/8” – 1/16” for steel doors and shall not exceed 1/8” for wood doors.
4.8.4 – Clearance
4.8.4.1 – The clearance under the bottom of a door shall be a maximum of ¾”.
4.8.4.2 – Where the bottom of the door is more than 38 inches above the finished floor, the maximum clearance shall not exceed 3/8” or as specified by the manufacturer’s label service procedure.
5.2.3.5.2 (6) – Door clearances do not exceed clearances listed in 4.8.4 and 6.3.1.7.

2013-NFPA 80
6.3.1.7 – Clearances
6.3.1.7.1 – The clearances between the top and vertical edges of the door and frame, and the meeting edges of doors swinging in pairs, shall be 1/8” – 1/16” for steel doors and shall not exceed 1/8” for wood doors.
4.8.4 – Clearance.
4.8.4.1 – The clearance under the bottom of a door shall be a maximum of ¾”.
4.8.4.2 – Where the bottom of the door is more than 38 inches above the finished floor, the maximum clearance shall not exceed 3/8” or as specified by the manufacturer’s label service procedure.
5.2.3.5.2 (6) – Door clearances do not exceed clearances listed in 4.8.4 and 6.3.1.7.

2010-NFPA 80
6.3.1.7 Clearances
6.3.1.7.1 – The clearances between the top and vertical edges of the door and frame, and the meeting edges of doors swinging in pairs, shall be 1/8” – 1/16” for steel doors and shall not exceed 1/8” for wood doors.
4.8.4 Clearance
4.8.4.1 – The clearance under the bottom of a door shall be a maximum of ¾”.
4.8.4.2 – Where the bottom of the door is more than 38 inches above the finished floor, the maximum clearance shall not exceed 3/8” or as specified by the manufacturer’s label service procedure.
5.2.4.2 (5) – Door clearances do not exceed clearances listed in 4.8.4 and 6.3.1.7.
