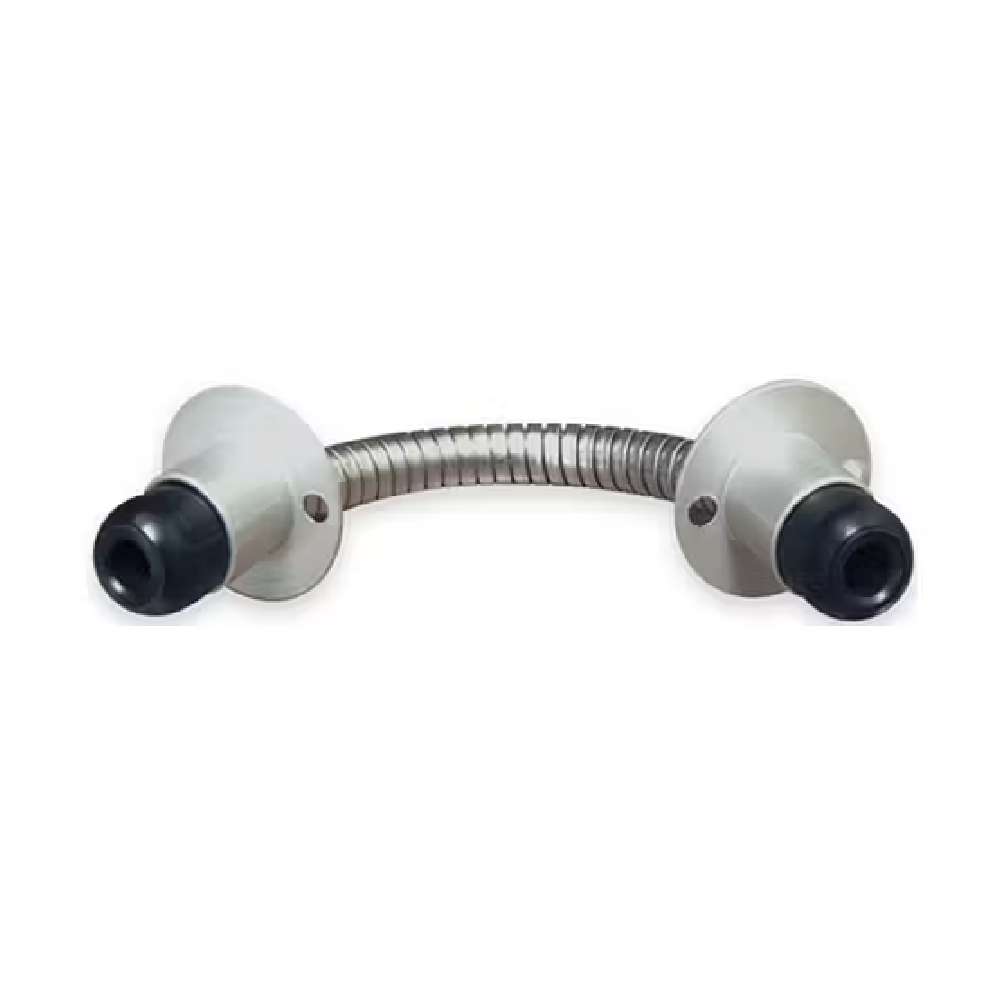

Command Access CDLAL Concealed Door Loop 6in length Alum cap
This patented Concealed Door Loop (CDL) is a low cost method of transferring low voltage power from the door frame to the locking device. Whereas typical door loops are surface mounted and remain constantly visible, the CDL slides into the door and/or frame completely concealing itself when the door is closed. Designed for Continuous and Butt hinge applications that are either full mortise, half mortise or half surface and have a standard throw. Commonly installed where ETH hinges are cost prohibitive and surface door loops are not desired.
Product Details:
- Zip Lock Bag: 6” x 4”: x .5”
- Weight: .5 Lbs
Part #
CDL-AL 6” length with ALUM finish end caps
CDL-BLK 6” length with BLACK finish end caps
CDL-AL-FX 6” length with ALUM finish end caps, & 1 side fixed to create complete concealment in the opposing side.
CDL-BLK-FX 6” length with BLACK finish end caps, & 1 side fixed to create complete concealment in the opposing side
