Corbin Russwin ML2003 HSS AntiHarm Knob Office Mortise Class

Quality

The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1" stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.

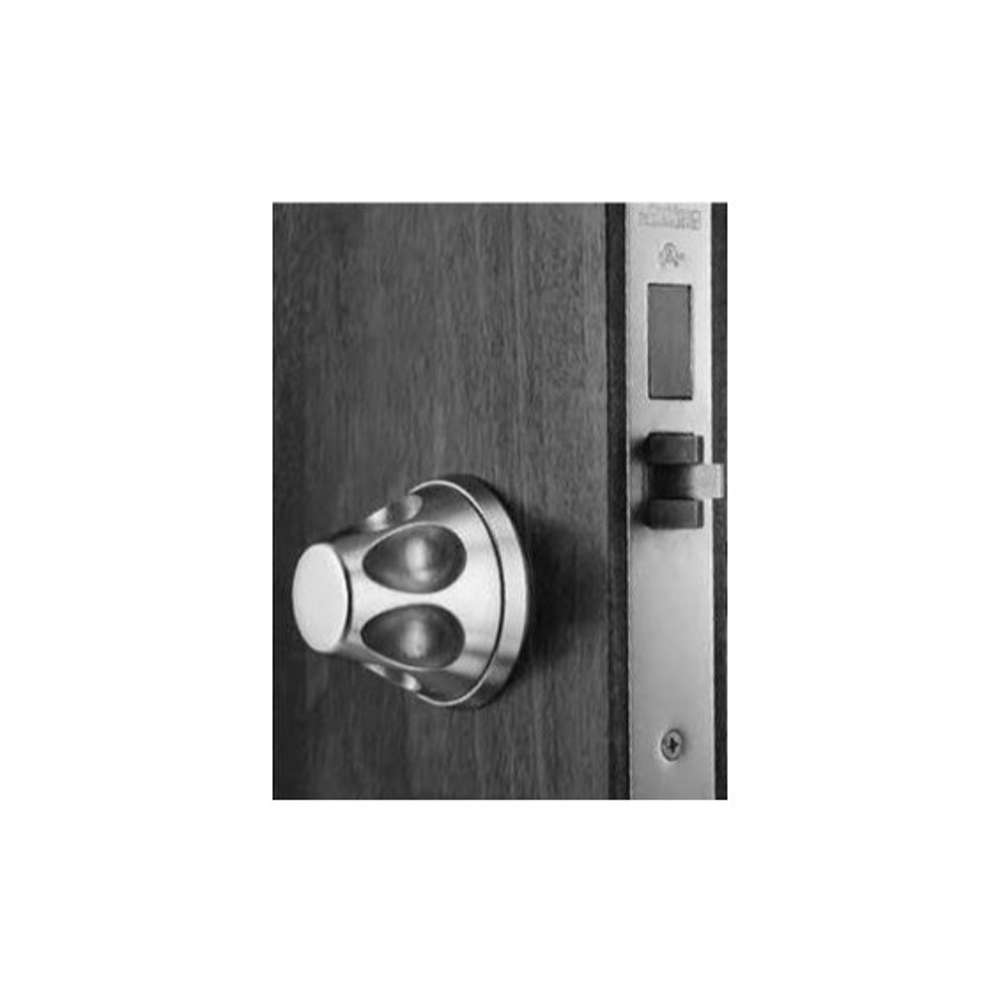

Anti-Harm Knob HSS

The anti-harm knob is designed for safety and security by eliminating catch points with a tapered knob recessed into the rose, a tapered thumbturn (for mortise lock thumbturn functions) with Torx® pin security screws, tapered cylinder collars and concealed mounting screws. Available as sectional trim, the anti-harm knob features recessed finger holes for a better grip and the reliability of the ML2000 Series ANSI/BHMA grade 1 mortise lock. Ideal for psychiatric or detention facilities.

Door Range: 1-3/4" standard.
Auxiliary Bolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
Latch: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
Strike: ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center.
Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.
Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.
Backset: Standard 2-3/4" Backset.
Certification: Certified A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.

Function:
 - Classroom (Classroom Lock): Inside lever is always active. Key releases outside lever.
