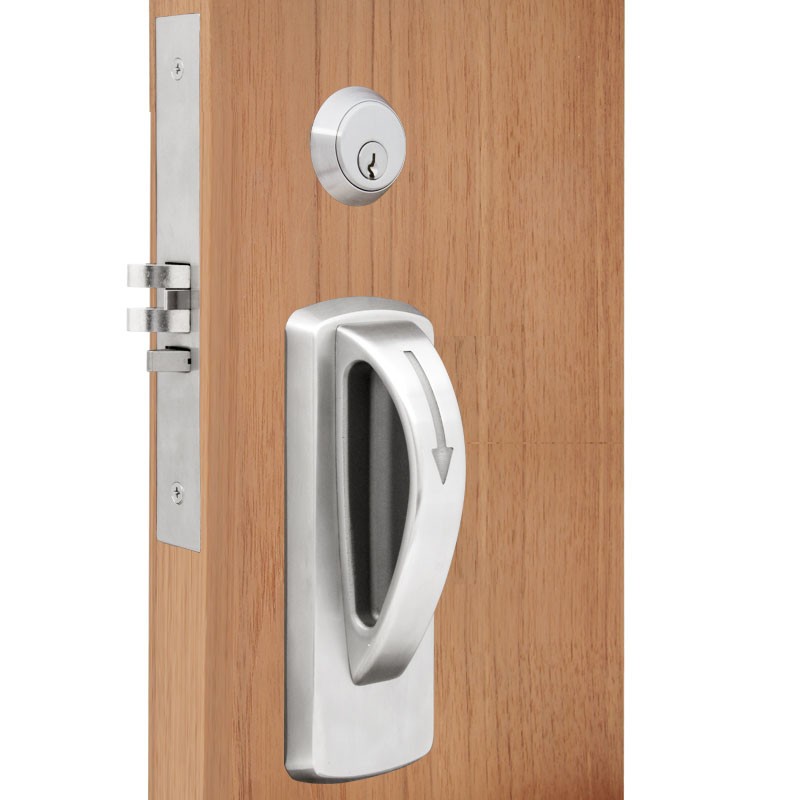

Town Steel ADA-5 Point Anti-Ligature Arched Mortise Lock Series


ANSI Grade 1 mortise lock set with 5-Point ligature resistant arch trim.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
Pricing varies based on options selected below.




  • Application: For facilities housing patients in risk
  • Door Thickness: 1-3/4" standard, other upon request
  • Backset: 2-3/4"
  • Finish: US32D
  • Cover Plate: Stainless steel, 7-1/2" x 2-3/4" x 1/2"
  • Arch Lever: Stainless steel
  • Thumb Turn: Stainless steel, ligature resistant , ADA compliant standard
  • Faceplate: Stainless steel, 1-1/4" x 8"
  • Strike: Stainless steel, ASA, 1-1/4" X4-7/8"
  • Mounting: Through-bolt, tamper resistant mounting screws, for wood and metal door
  • Cylinder: Brass with stainless steel cover, 6pin, Schalge "C" keyway standard, 2 keys per cylinder
  • Warranty: 10 years limited


  • OMH: Accepted by New York State Office of Mental Health Patient Saefty Standard
  • ANSI/BHMA: A156.13-2012 Grade 1 Certified
  • UL/ULC: UL 10C listed 3-hour rating
  • BAA: Meets requirements of the Buy American Act
  • ADA: Meets requirements of the Americans with Disabilities Act
